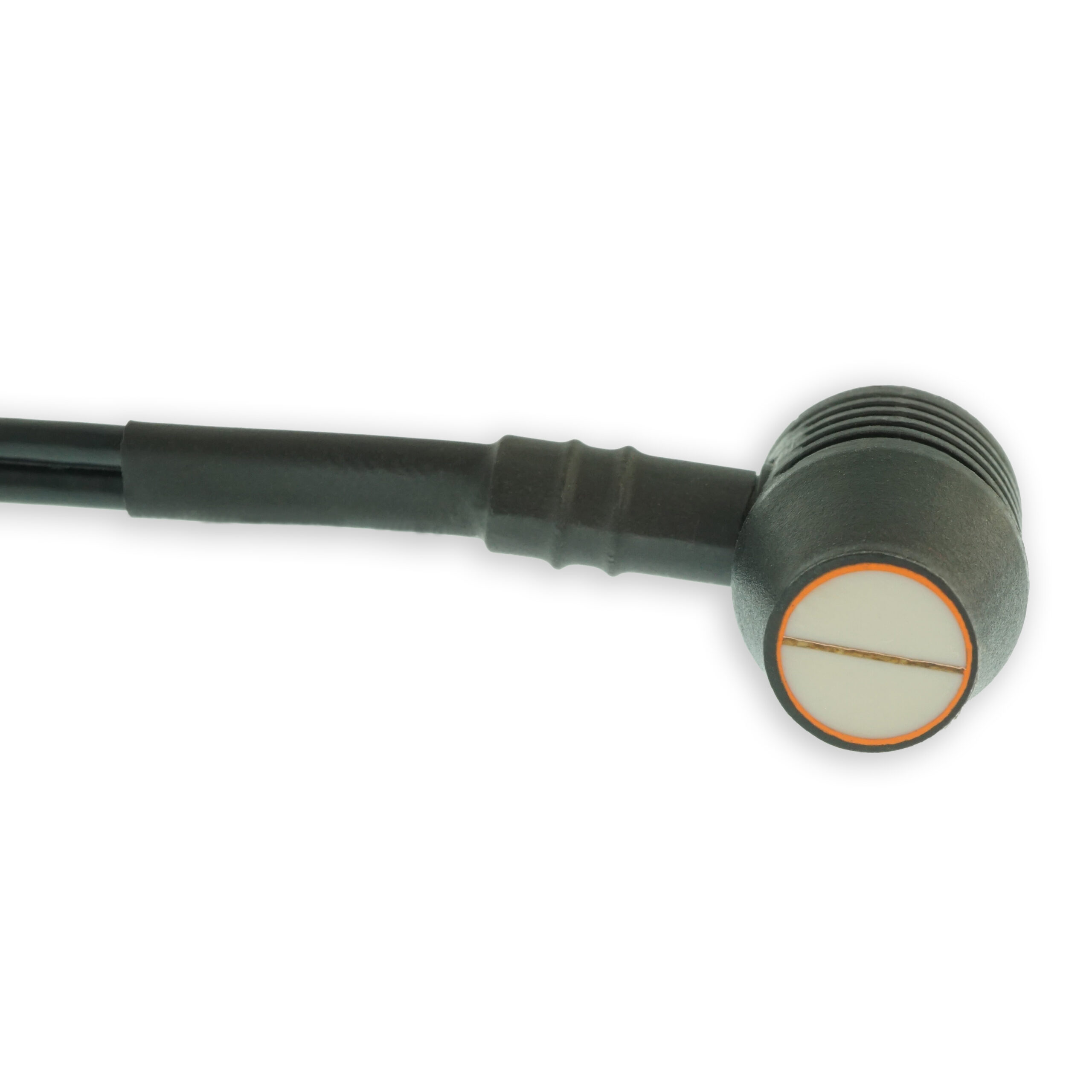

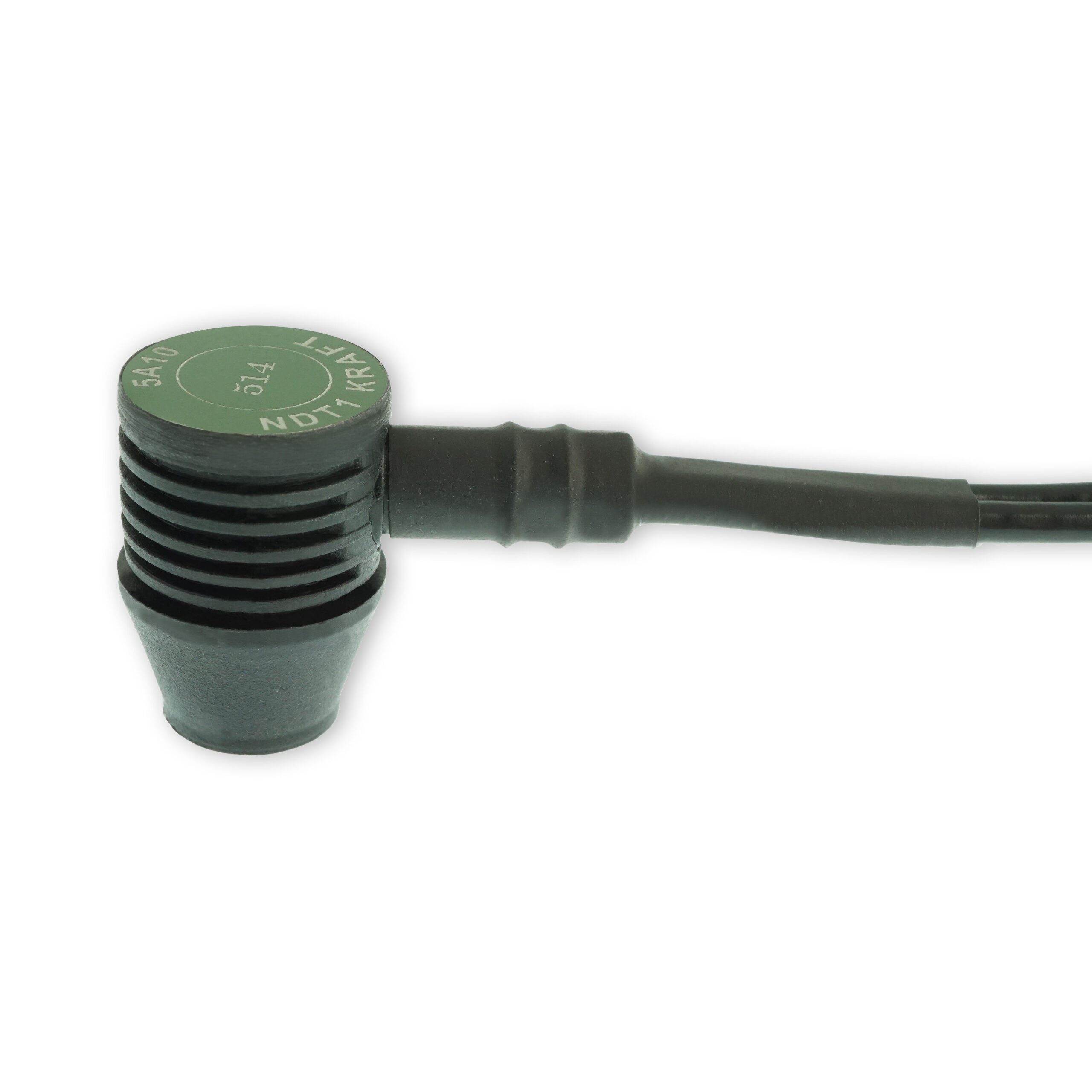

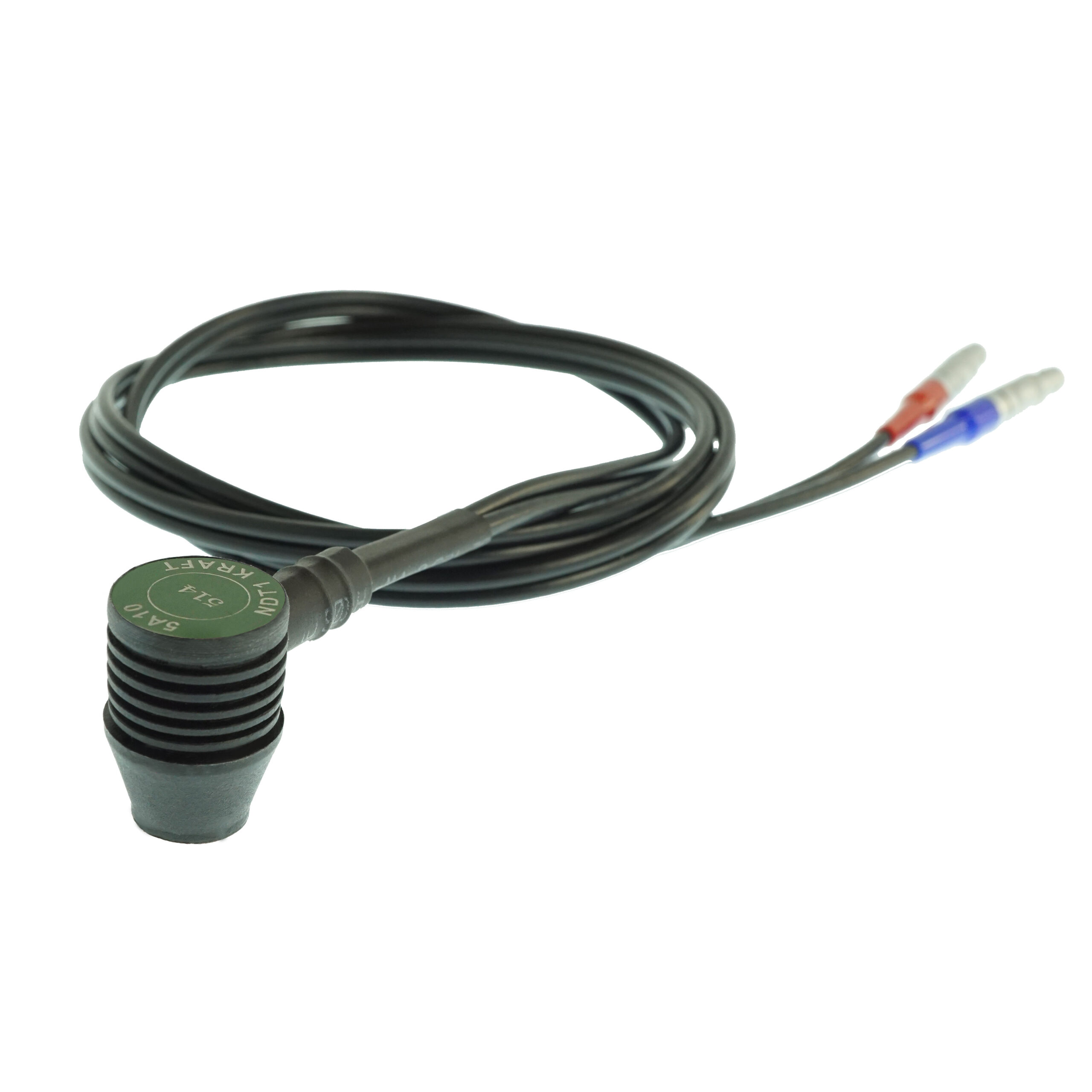

Description
Purpose
Measurement of thickness of walls of metal tanks, containers, pipes of big diameters.
Particulars
Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.
Basic technical characteristics
| Technical data | Dual element probe 5A10 | Units |
|---|---|---|
| operation frequency | 5 | MHz |
| thickness range (for steel) | from 1.0 to 200.0 | mm |
| through paint testing (only for flat objects), (max thickness of paint ≤0.5 mm) | ||
| dimensions of contact surface | Ø10 | mm |
| overall dimensions | Ø18 x 26 | mm |
| operating temperature range: | from -10 to +60 | °C |
