Description

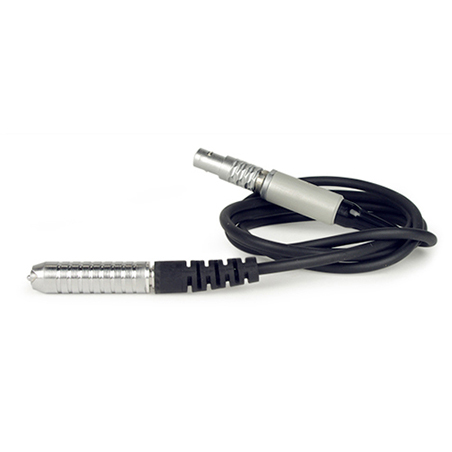

F1 is a probe designed for measuring the thickness of galvanic (zinc, chrome, cadmium, etc.) and dielectric (lacquer, paint, anodic oxide, powder, enamel, etc.) coatings up to 0.3 mm thick on ferromagnetic parts, including components with small radii of curvature and hard-to-reach areas of complex-shaped surfaces.
Features
- Probe with a spring-loaded metal body and a V-shaped groove for positioning on cylindrical and spherical parts that provides complete tuning out from influence of coating’s electric conductivity.
- Virtually non-wearing contact surface with high resistance to chemical exposure in galvanic environments.
Basic technical characteristics
| Technical data | F1 | Units |
|---|---|---|
| measurement range, T | 0-300 μm (0-0.3 mm) | |
| measurement accuracy | ±(0.01T+1) | µm |
| diameter of test area | Ø3 | mm |
| minimum diameter of substrate, Øconc ( Øconv) | 4.5 (1) | mm |
| dimensions | Ø9×65 | mm |
