sales@ndtone.comRSWA F1Resistance Spot Weld Analyzer
RSWA F1Resistance Spot Weld Analyzer

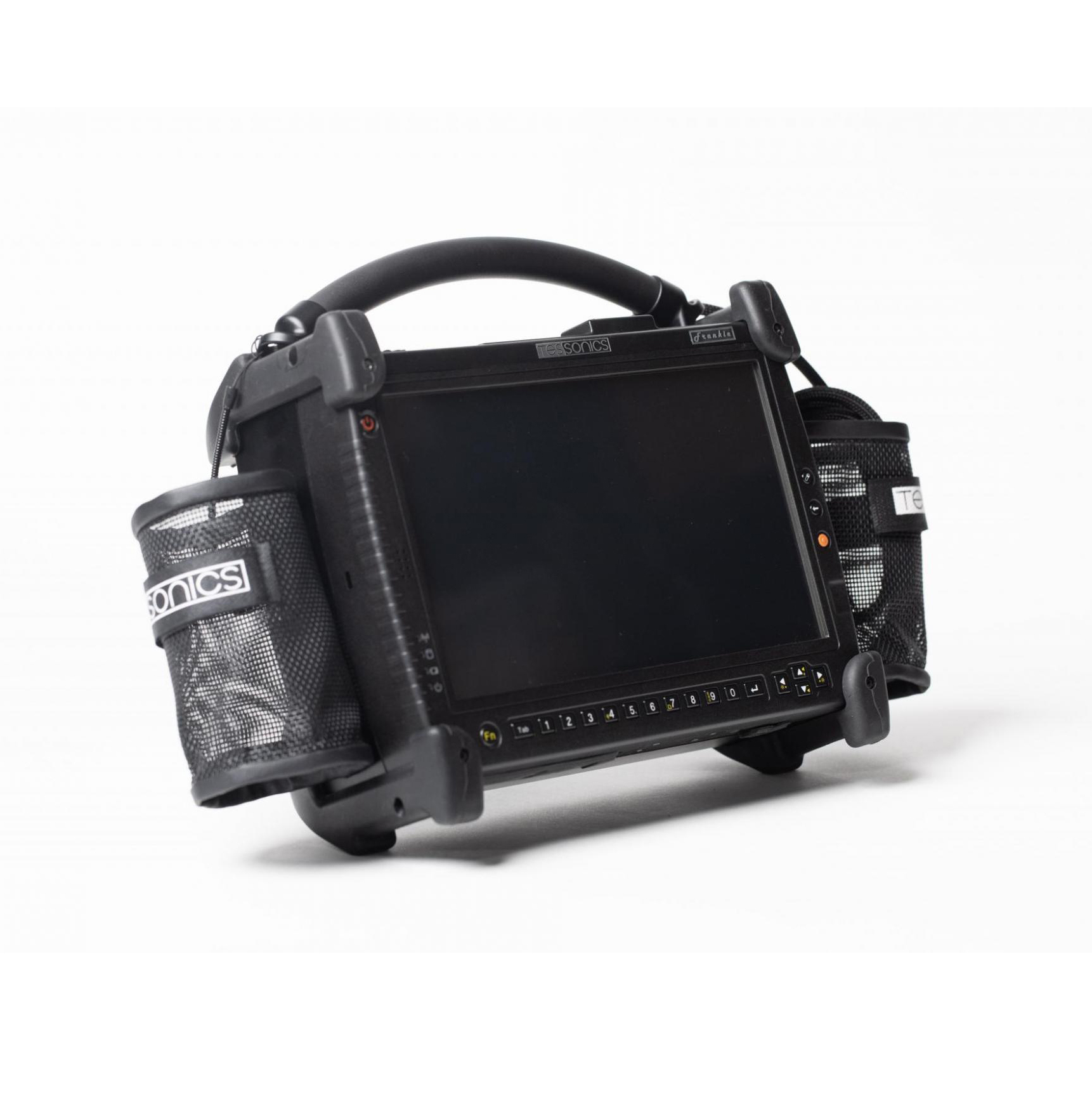

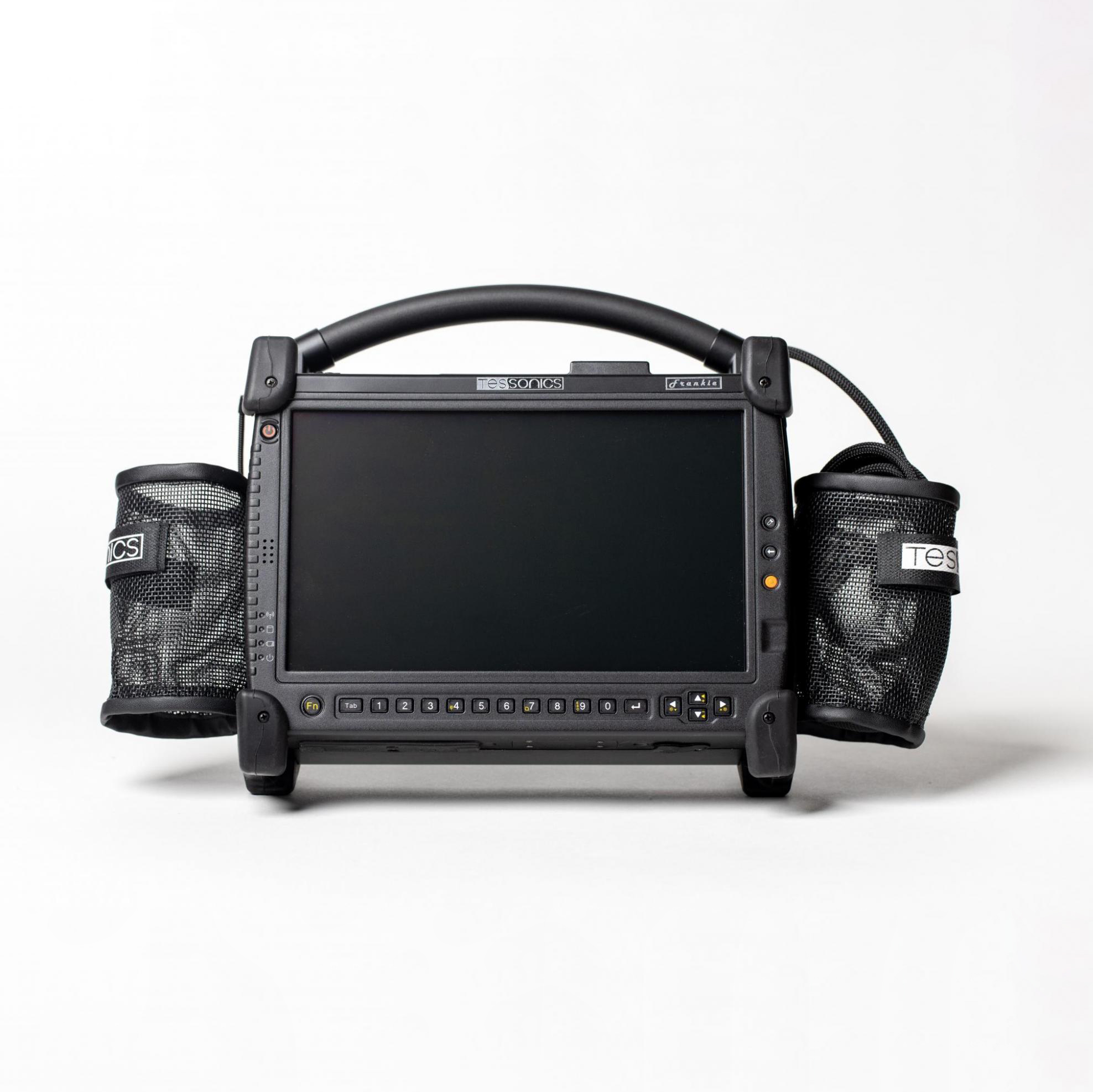

The RSWA F1 is a portable ultrasonic inspection device for non-destructive quality evaluation of resistance spot welds. Using a multi-channel matrix-array transducer, it provides real-time imaging of the internal weld structure and automatic estimation of weld nugget diameter.
Designed for 2T and 3T steel sheet assemblies, including mild, high-strength and dual-phase ultra-high-strength steels, the RSWA F1 is particularly suitable for automotive production and quality control of spot-welded structures.
Description
RSWA F1 is an ultrasonic device designed for non-destructive evaluation and quality inspection of resistance spot welds.
RSWA F1 from Tessonics is a portable and easy to use device capable of producing images of spot weld’s internal structures. In addition to live on-screen image, the device estimates the nugget diameter and compares it with predefined minimum nugget requirements.
Using the unique technology of multi-channel ultrasonic matrix transducer, RSWA collects data from the surface and from the internal structures of the nugget. Special algorithms use this data to reconstruct the image of the spot weld and estimate the average diameter of the nugget area in real time.
Features
- Portable ultrasonic system for non-destructive inspection of resistance spot welds
- Real-time imaging of the internal weld structure
- Multi-channel ultrasonic matrix-array technology
- Automatic and manual weld nugget size estimation
- Real-time estimation of the average weld nugget diameter
- Automatic comparison with predefined minimum nugget requirements
- Automatic detection of scanning depth inside the metal
- Single frame a data acquisition modes
- Inspection of 2T and 3T sheet-metal stacks
- Suitable for mild steel, high-strength steel and dual-phase ultra-high-strength steel
- Inspection of bare, galvanized, galvanealed, e-coated and painted materials
- Two user-interface levels adapted to different operator skill levels
- Built-in reporting and file storage
- Portable design for production and quality-control applications
Applications
Metal stacks: 2T and 3T; 0.6–2.4 mm plate thicknesses
Types of materials: mild steel, high strength steel, dual phase ultra high strength steel
Coatings: bare, zinc coating (galvanized, galvaneal), e-coating, paint
