Description

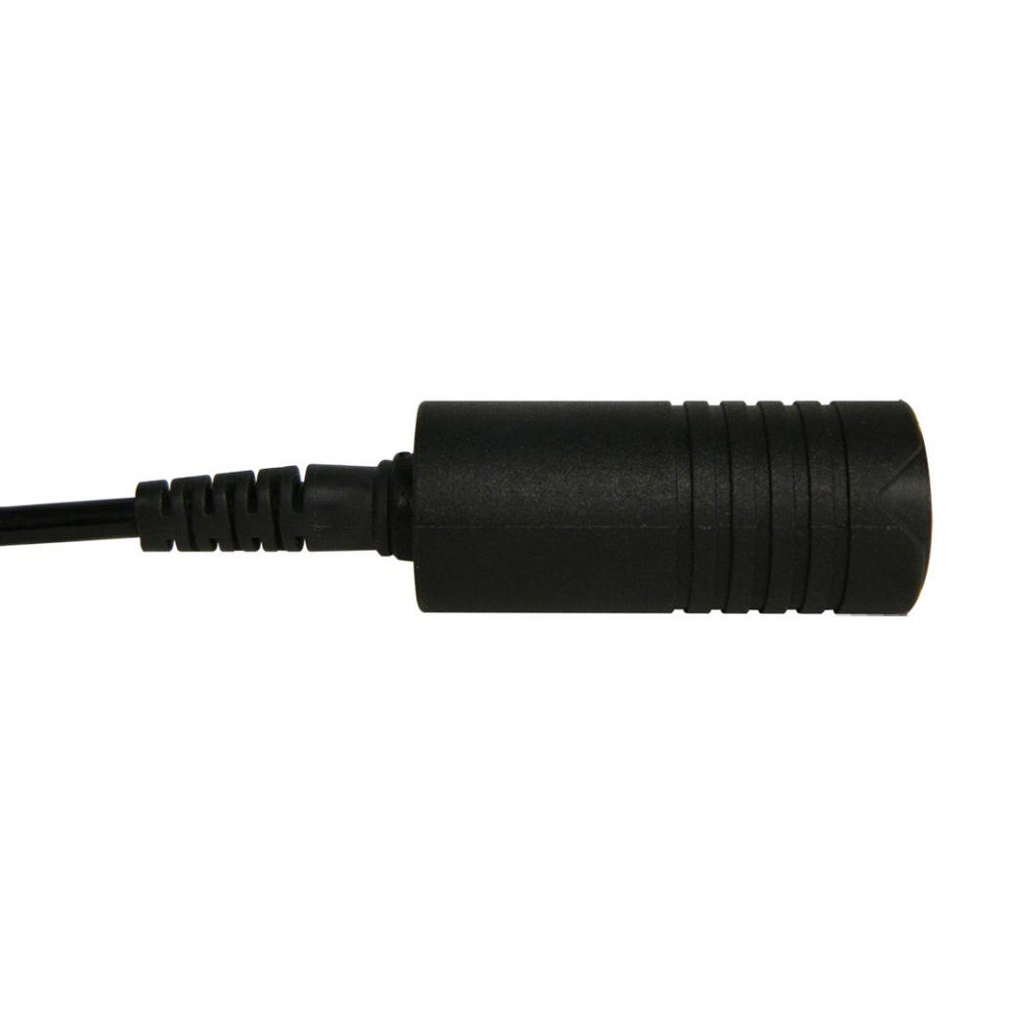

NF3 is a probe designed for measurement of the thickness of thick-layer dielectric coatings on electrically conductive ferromagnetic or non-ferromagnetic substrates.
Features
- Probe designed for field inspection of special-purpose coatings (film, bitumen, fire-retardant, cement, plastic, etc.).
- Possibility to measure the thickness of fiberglass structures during molding.
- High temperature stability.
Basic technical characteristics
| Technical data | NF3 | Units |
|---|---|---|
| measurement range, T | 0-30000 µm (0-30mm) | |
| measurement accuracy | 0-10 mm: ≤±(0.015T+0.05) mm | µm |
| 10-30 mm: ≤±0.02T mm | ||
| diameter of test area | 40 | mm |
| minimum radius of base, Øconc ( Øconv) | 45 (15) | mm |
| size | Ø23×87 | mm |
