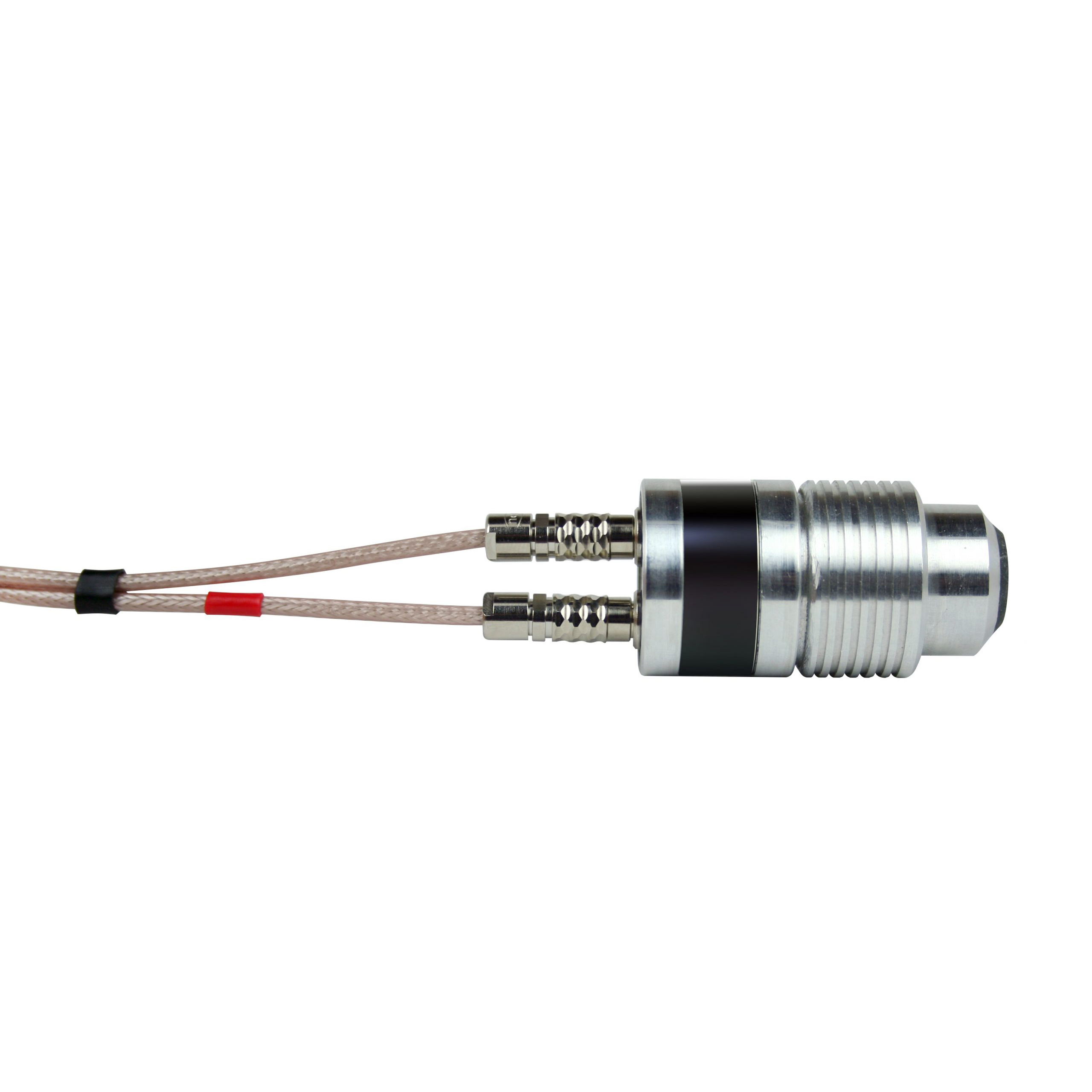

Dual element high-temperature probe 5T12
Description
Straight dual-element high-temperature probe 5T12 is designed for the residual wall thickness measurement of pipes, boilers, and other products with surface temperatures up to 350 °C. Probe is used with thickness gauges B6-С and B2.
Features
- Housing designed for convenient operation while wearing gloves.
- The probe withstands thermal shock.
- Temperature stability of wedge geometry and sensitivity.
- Short-term measurements on objects with temperatures up to 350 °C are possible with contact duration up to 5 seconds, followed by air cooling of the probe for 60 seconds.
- Sockets for Lemo 00 connectors.
Basic technical characteristics
| Technical data | Dual element high-temperature probe 5T12 | Units |
|---|---|---|
| operation frequency | 5 | MHz |
| thickness range (for steel) | from 1 to 100* | mm |
| dimensions of contact surface | Ø13 | mm |
| overall dimensions | Ø26×50 | mm |
| operating temperature range | from -10 to +250/350 | °C |
| * The range depends on the type of device used with the probe. | ||
