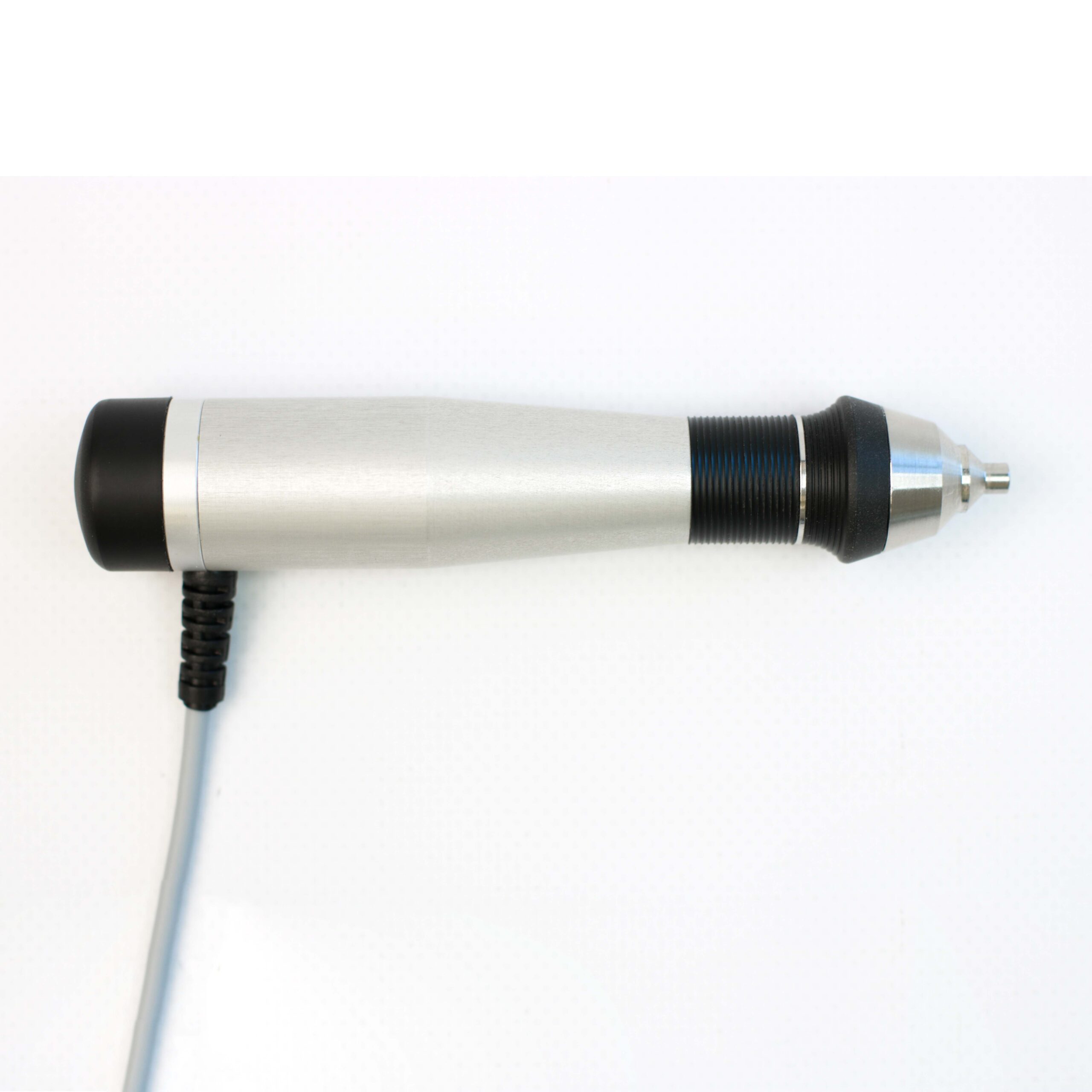

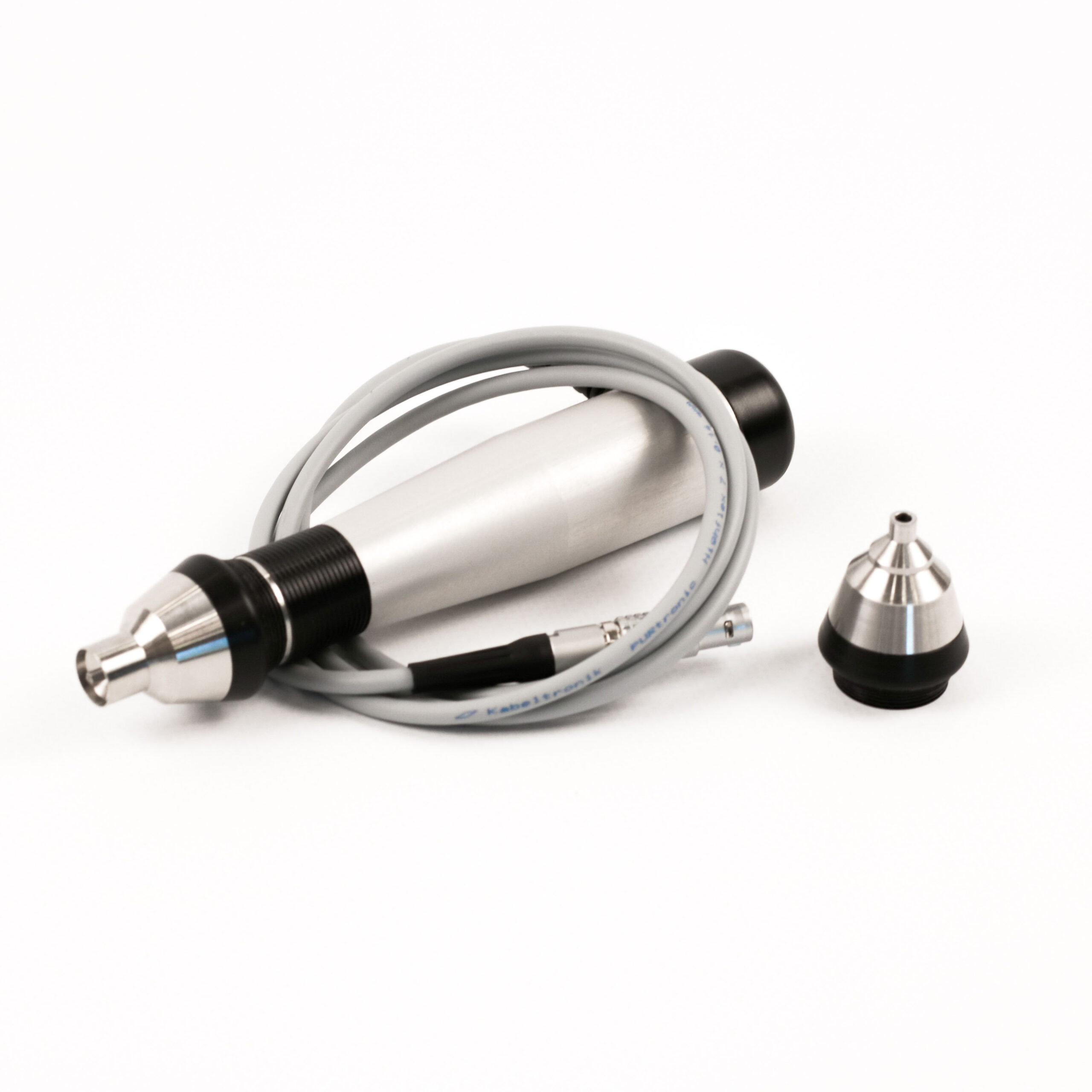

sales@ndtone.comU-100N UCI probe
Description
Probe for inspection of components with increased surface roughness and poorly prepared, rough surfaces.
Basic technical characteristics:
Pressure Force 98 N.
— min metal thickness, mm, 2;
— min radius for test, mm, 5;
— max surface roughness Ra, µm, 3.2;
— dimensions Ø26 x 140
