Description

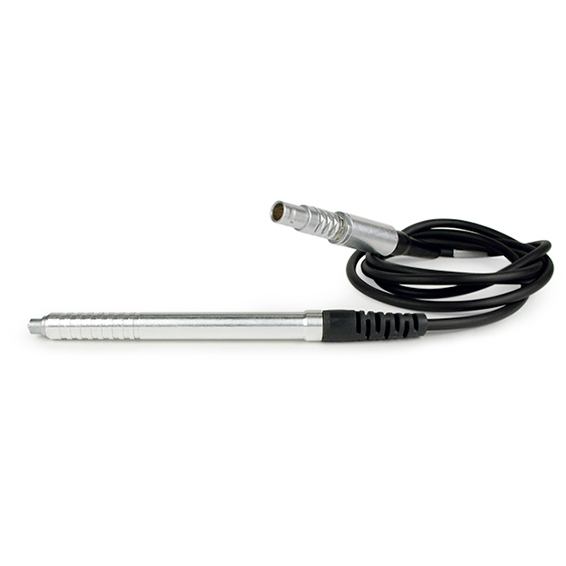

F0 is a probe designed for thickness measurement of galvanic (zinc, chrome, cadmium, etc.) and dielectric (lacquer, paint, anodic oxide, powder, enamel, etc.) coatings up to 0.3 mm thick on ferromagnetic parts, including components with small radii of curvature and hard-to-reach areas of complex-shaped surfaces.
Features
- Pencil-type probe with fixed measurement system.
- Pencil-type probe with a measurement spot diameter of less than 3 mm that provides complete tuning out from influence of coating electric conductivity.
- Compensation for probe tilt relative to the test surface during measurement.
- Virtually non-wearing contact surface with high resistance to chemical exposure in galvanic environments.
Basic technical characteristics
| Technical data | F0 | Units |
|---|---|---|
| measurement range, T | 0-300 μm (0-0.3 mm) | |
| measurement accuracy | ±(0.01T+1) | µm |
| diameter of test area | Ø3 | mm |
| minimum diameter of substrate, Øconc ( Øconv) | 4.5 (1) | mm |
| dimensions | Ø9×115 | mm |
