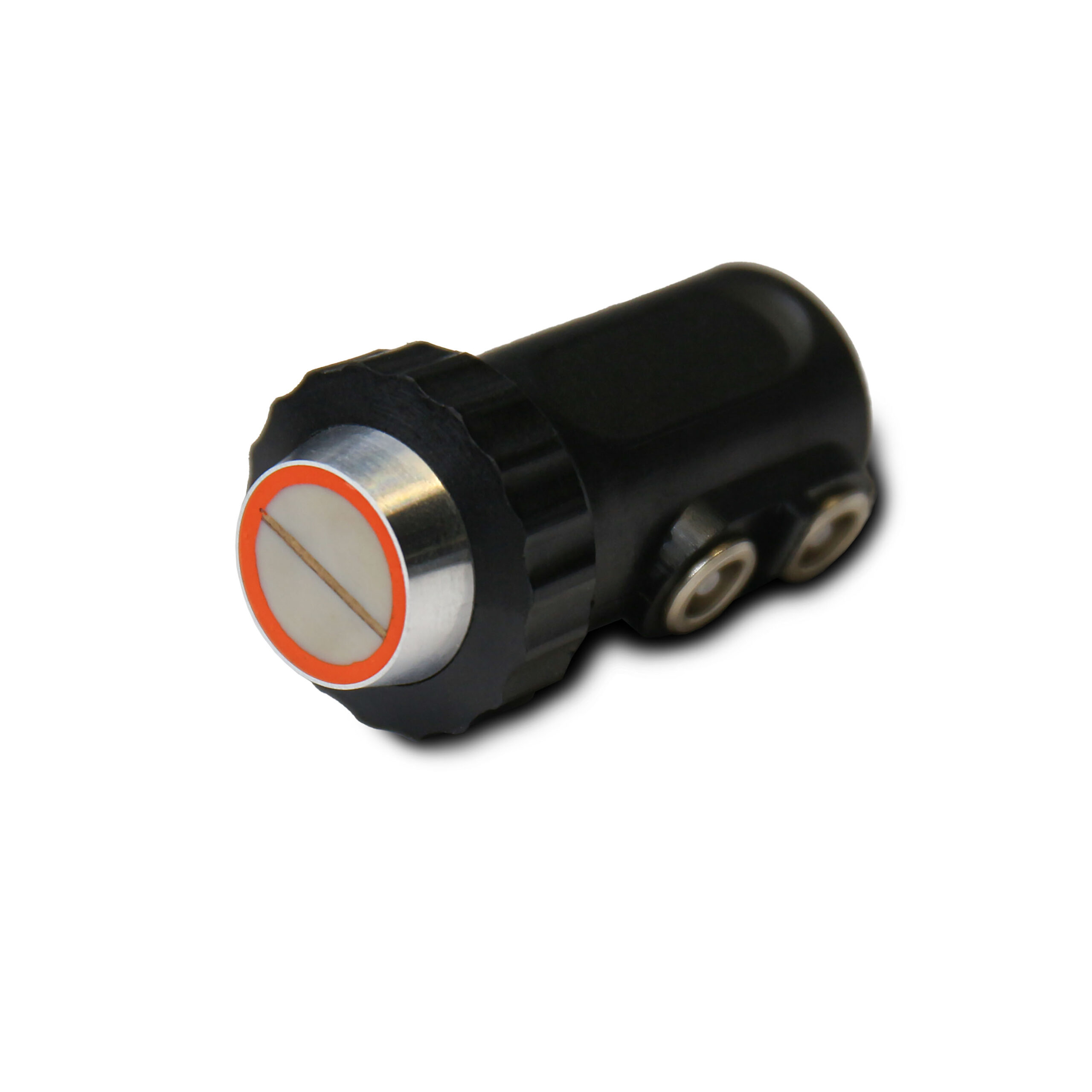

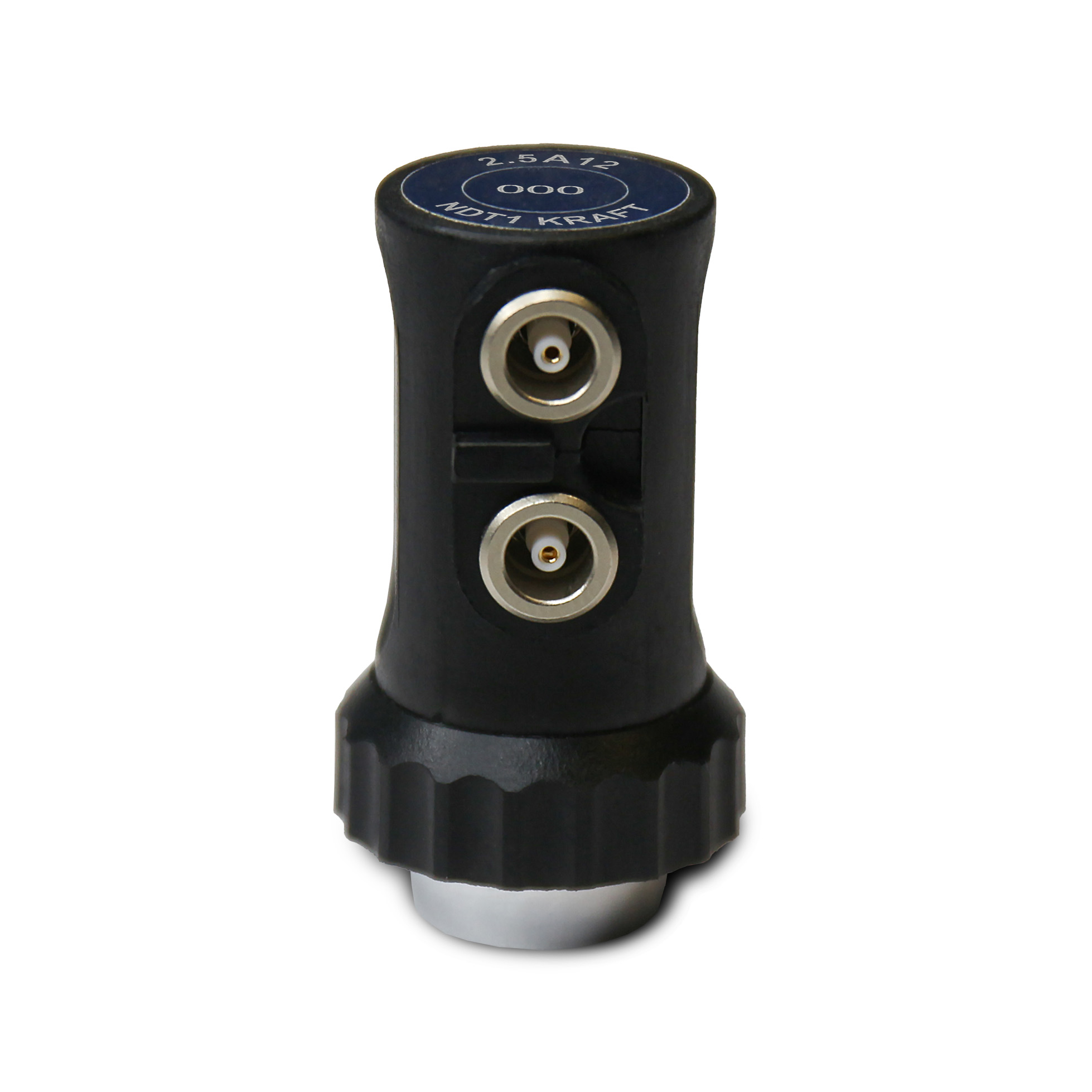

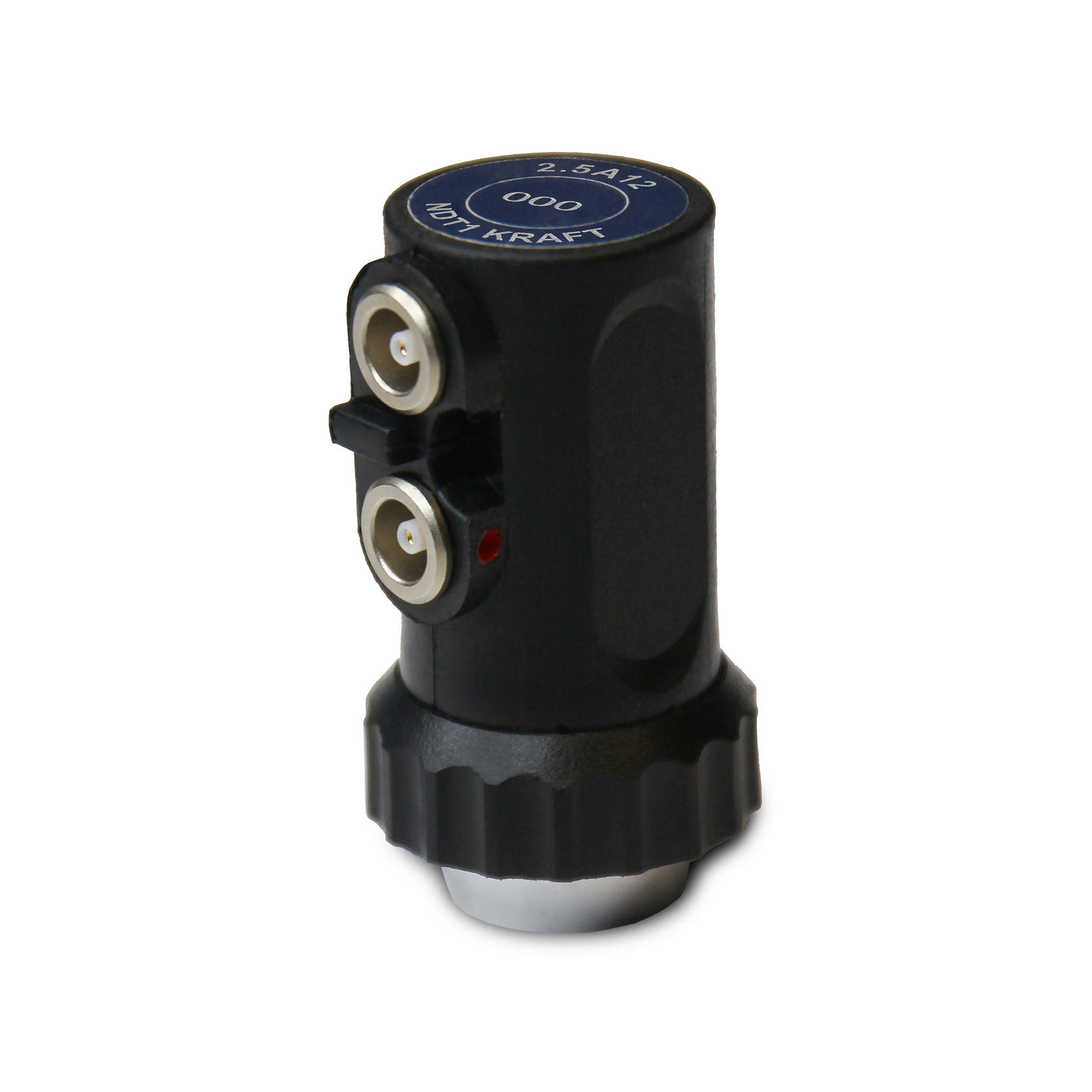

sales@ndtone.comDual element probe 2.5A12
Description
Purpose
Measurement of residual wall thickness of metallic and non-metallic products during manufacture, operation and repare.
Particulars
Good acoustic contact on rough and very rusted surface.
Basic technical characteristics
| Technical data | Dual element probe 2.5A12 | Units |
|---|---|---|
| operation frequency | 2.5 | MHz |
| thickness range (for steel) | from 3 to 200 | mm |
| dimensions of contact surface | Ø15 | mm |
| element dimensions | Ø12/2 | mm |
| min. product radius R at wall thickness S | R20/S3 | mm |
| max. product surface roughness | 80 | µm |
| overall dimensions | Ø25 x 45 | mm |
| operating temperature range | from -10 to +50/100 | °C |
