Description

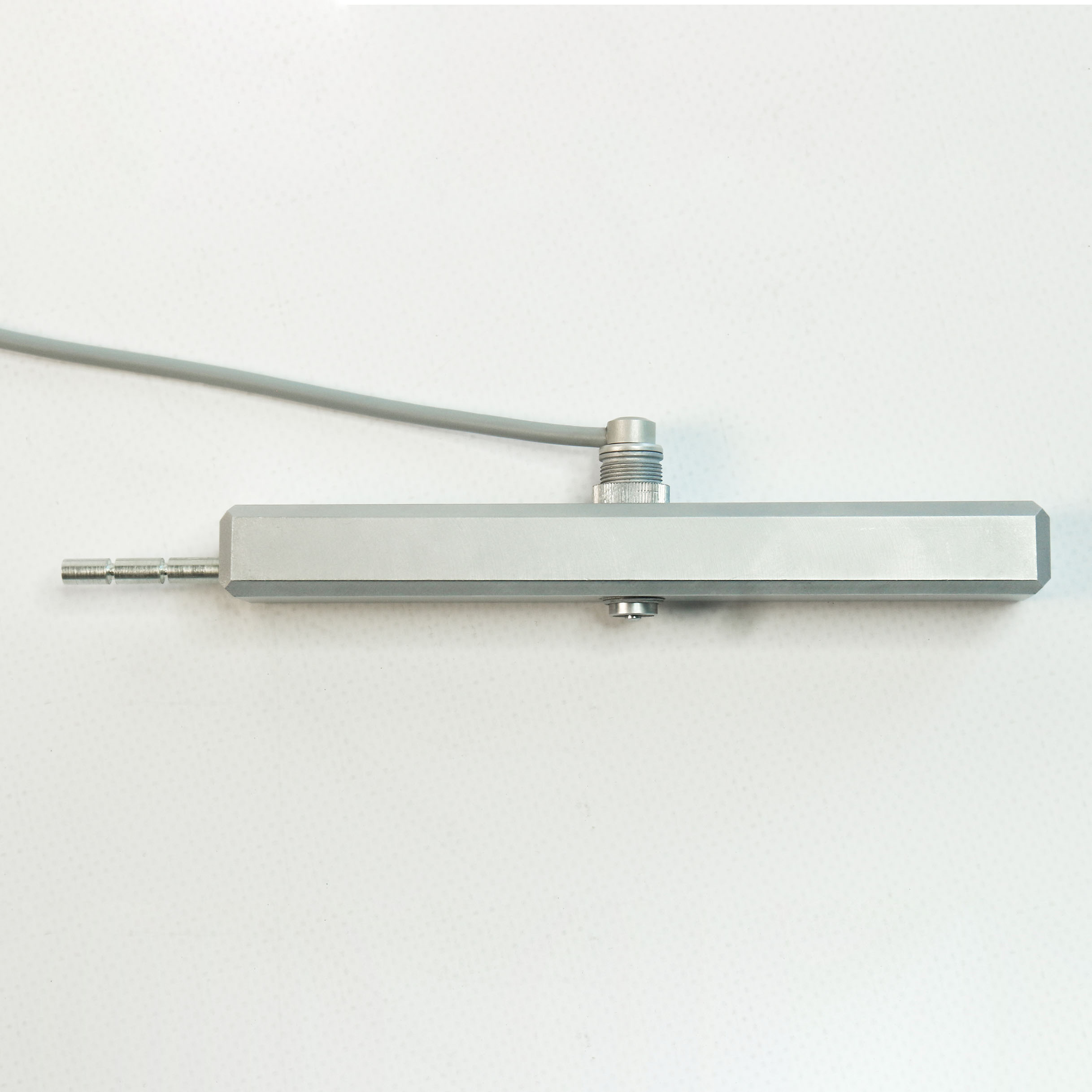

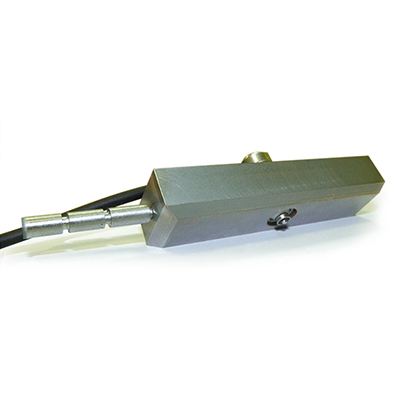

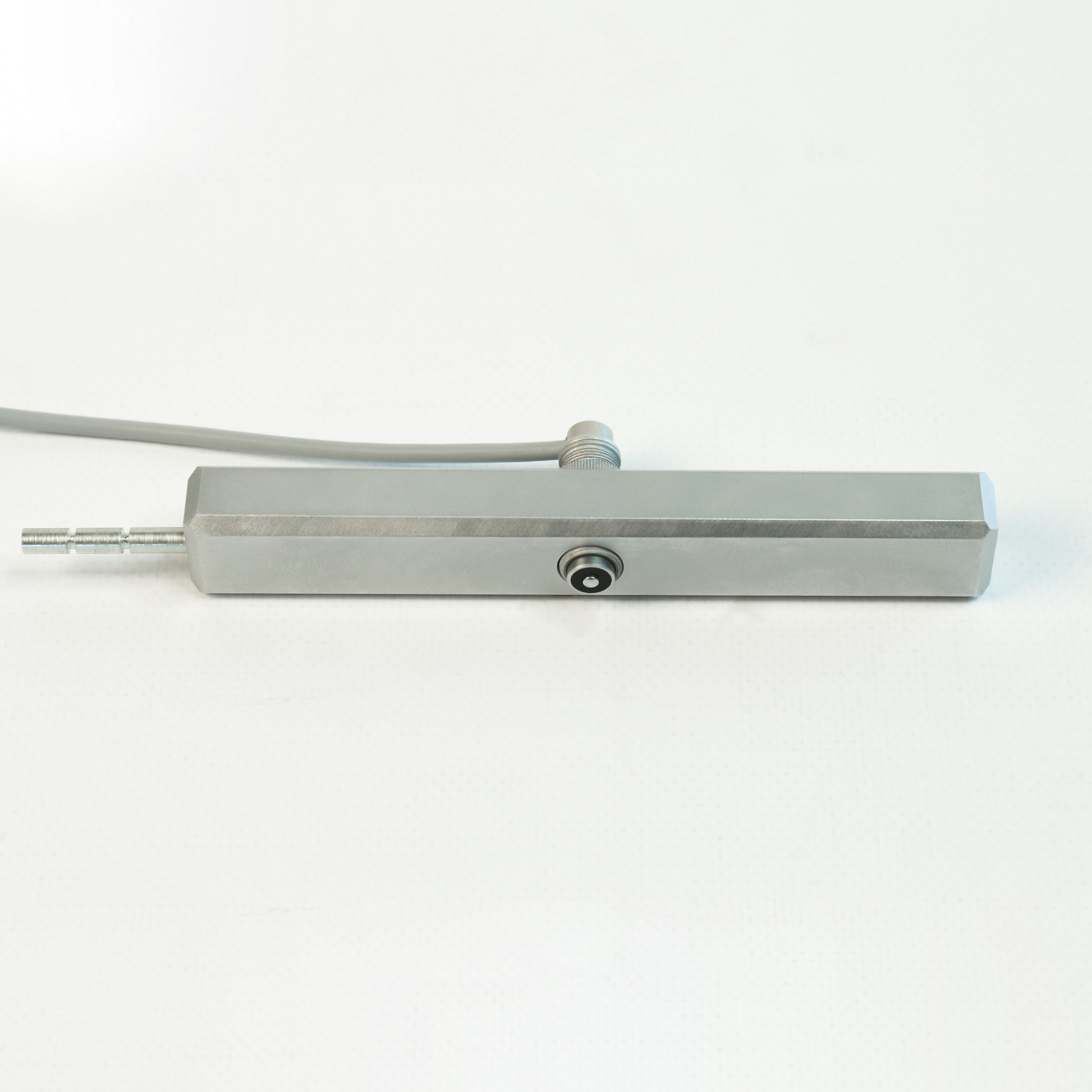

Probe for thickness measuring inside pipes made of ferromagnetic (FxP) and non-ferromagnetic (NFxP) materials.
Particulars
Design of probes allows control in manual mode the pipes opened from two sides. Appliances for pilling probe depends on diameter and length of pipe.
Features
- measurement range, T, mm: 0-15;
- minimum diameter of pipe, mm: 14;
- pusher length, mm: 500-6000*.
* Pusher length is specified when ordering.
Versions
| Probe | Measurement range, T, mm | Measurement accuracy, mm | Minimum diameter of pipe, mm |
| F1xP20 | 0-0.3 | ±(0.01T+0.001) | 20 |
| F2xP20 | 0-3 | 0-1.5 mm: ±(0.015T+0.001) 1.5-3 mm: ±(0.02T+0.001) |
20 |
| F2xP40 | 0-3 | 0-1.5 mm: ±(0.015T+0.001) 1.5-3 mm: ±(0.02T+0.001) |
40 |
| F3xP40 | 0-6 | 0-4 mm: ±(0.015T+0. 005) 4-6 mm: ±(0.02T+0.005) |
40 |
| NF1xP20 | 0-2 | ±(0.01T+0.001) | 20 |
| NF1xP40 | 0-2 | ±(0.01T+0.001) | 40 |
| NF2xP40 | 0-15 | 0-7.5 mm: ±(0.015T+0.010) 7.5-15 mm: ±(0.02T+0.010) |
40 |
