Description

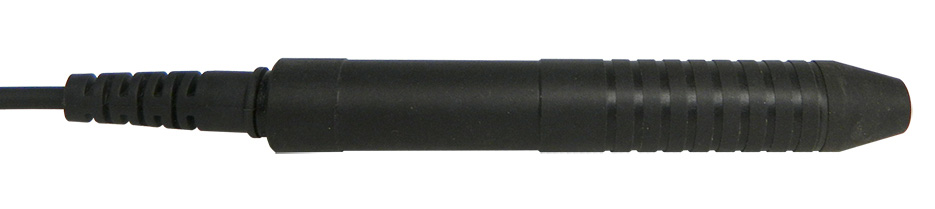

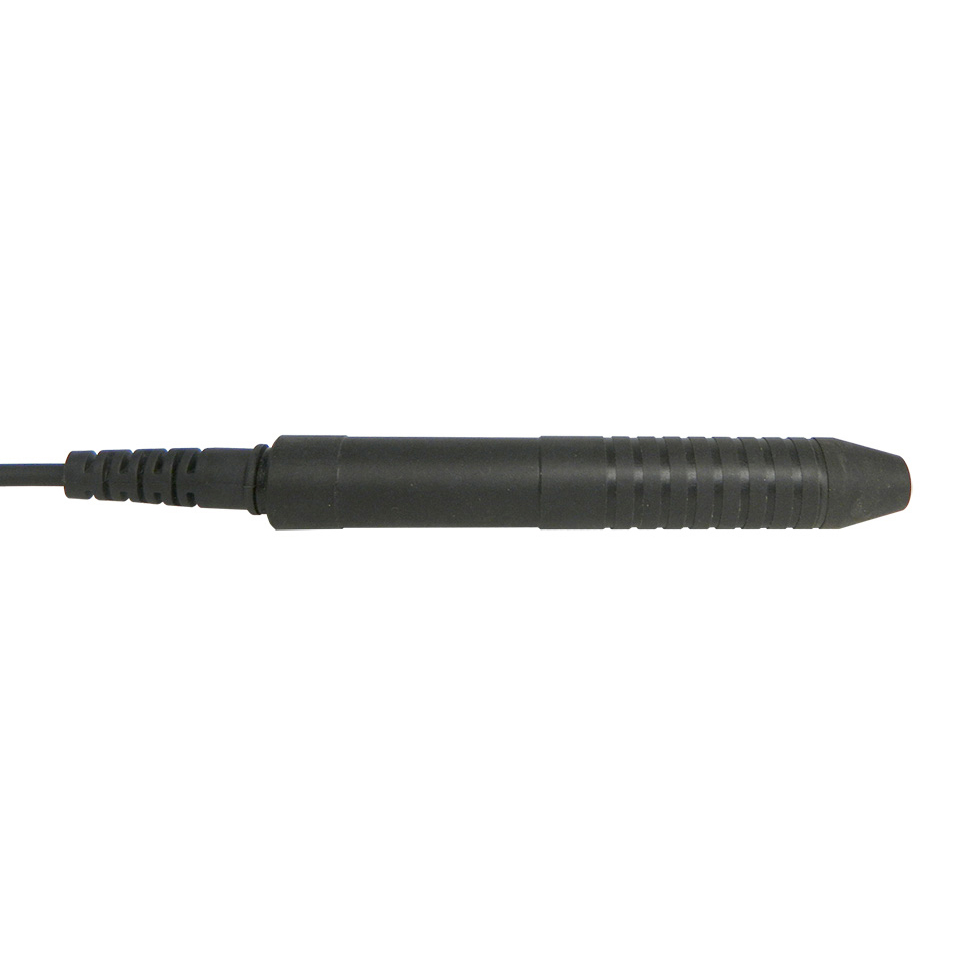

PH1 is a probe designed for measuring the thickness of electrolytic nickel and other galvanic coatings on parts made of ferrous metals and alloys, including:
- surfaces with roughness up to Rz 400;
- coatings beneath dielectric layers.
Features
- Pencil-type probe for precise thickness measurement of galvanic coatings.
- Compensation for gap effects (e.g., due to dielectric coatings).
- Compensation for probe tilt during measurement.
- High resistance to chemical exposure in galvanic environments.
- Minimal influence of substrate and coating roughness on measurement results.
- Calibration using natural coating thickness reference specimens (samples).
Basic technical characteristics
| Technical data | PH1 | Units |
|---|---|---|
| measurement range, T | 0-120 µm (0-0.12 mm) | |
| measurement accuracy | ≤±( 0.03T + 1) | µm |
| minimum radius of base | 1 | mm |
| diameter of test area | 4.7 | mm |
| size | Ø12×40 | mm |
