Corona 40Holiday Detector

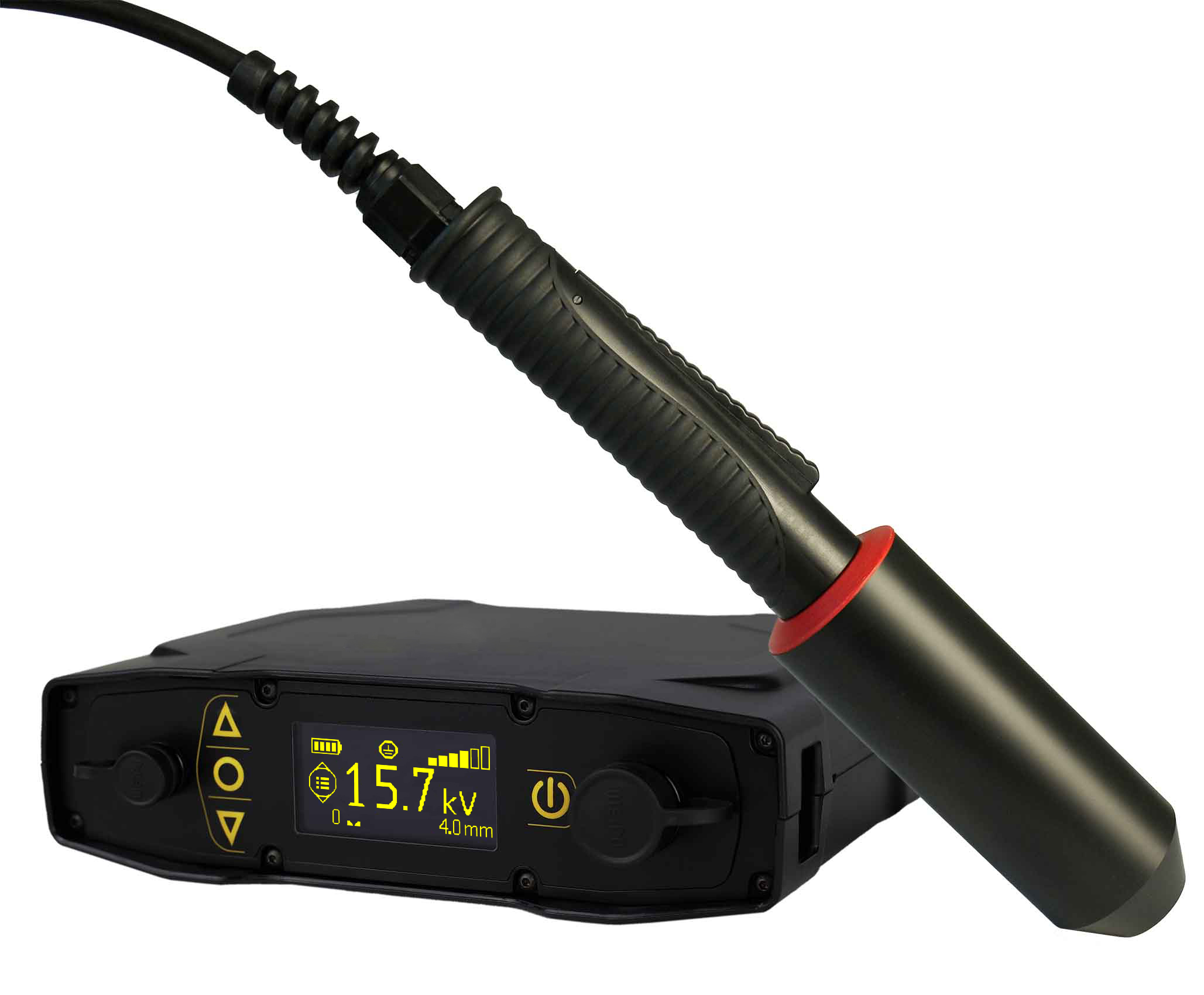

The Corona 40 is a portable pulsed high-voltage holiday detector for detecting pinholes, pores, cracks, leaks and other discontinuities in thick protective dielectric coatings, linings and membranes. It is designed for testing coatings from 0.5 to 25 mm thick.
Description
The Corona 40 is a portable high-voltage holiday detector designed for non-destructive inspection of protective dielectric coatings, linings and membranes. It is used to detect coating discontinuities such as pinholes, pores, cracks, leaks, tears and other defects that may expose the substrate and reduce corrosion protection.
The device provides an adjustable test voltage from 4 to 40 kV and is suitable for coatings from 0.5 to 25 mm thick. Interchangeable electrodes allow inspection of pipelines, tanks, vessels, metal structures and other coated equipment with flat, cylindrical or complex-shaped surfaces.
The pulsed high-voltage test method provides reliable defect detection while reducing the risk of excessive thermal impact on the coating. The Corona 40 is suitable for production inspection, installation control and in-service testing of protective coating systems.
Features
– High accuracy of maintaining the test voltage on the electrode (not more than 5%);
– Powerful test voltage generator (up to 50 W);
– False defect detection system;
– The device has a digital interface containing:
1. test voltage calculator, which allows to calculate the test voltage based on the known thickness of the tested coating;
2. user calibration mode, which allows to correct the device calibration by the user during the entire device lifetime if the appropriate measuring equipment is available;
3. single-electrode testing mode, allowing to detect through coating defects without a connected earthing wire;
4. defect counter;
– Operating temperature range: from minus 40 °C to plus 50 °C;
– The weight of the control unit does not exceed 0.65 kg;
– Autonomous operation time (up to 20 h at a test voltage of 40 kV using a fan electrode).
Basic technical characteristics
| Technical data | Corona 40 | Units |
|---|---|---|
| Minimum thickness of tested coatings | 0.5 | mm |
| Maximum thickness of tested coatings, at least | 25 | mm |
| Type of holiday detector | Pulsed | |
| Test voltage range | From 4 to 40 | kV |
| Pulse frequency | 50 | Hz |
| Weight of the control unit, maximum | 650 | g |

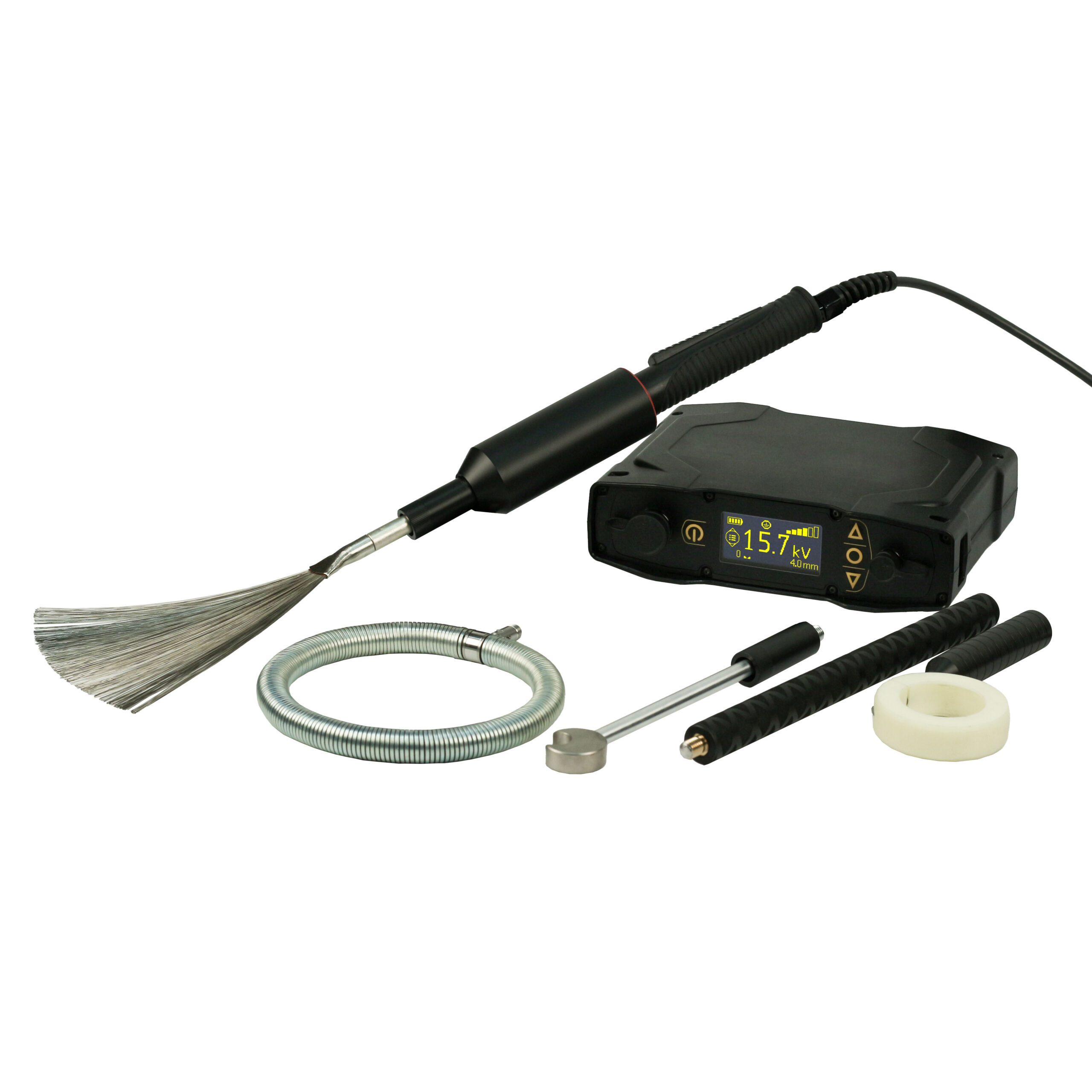

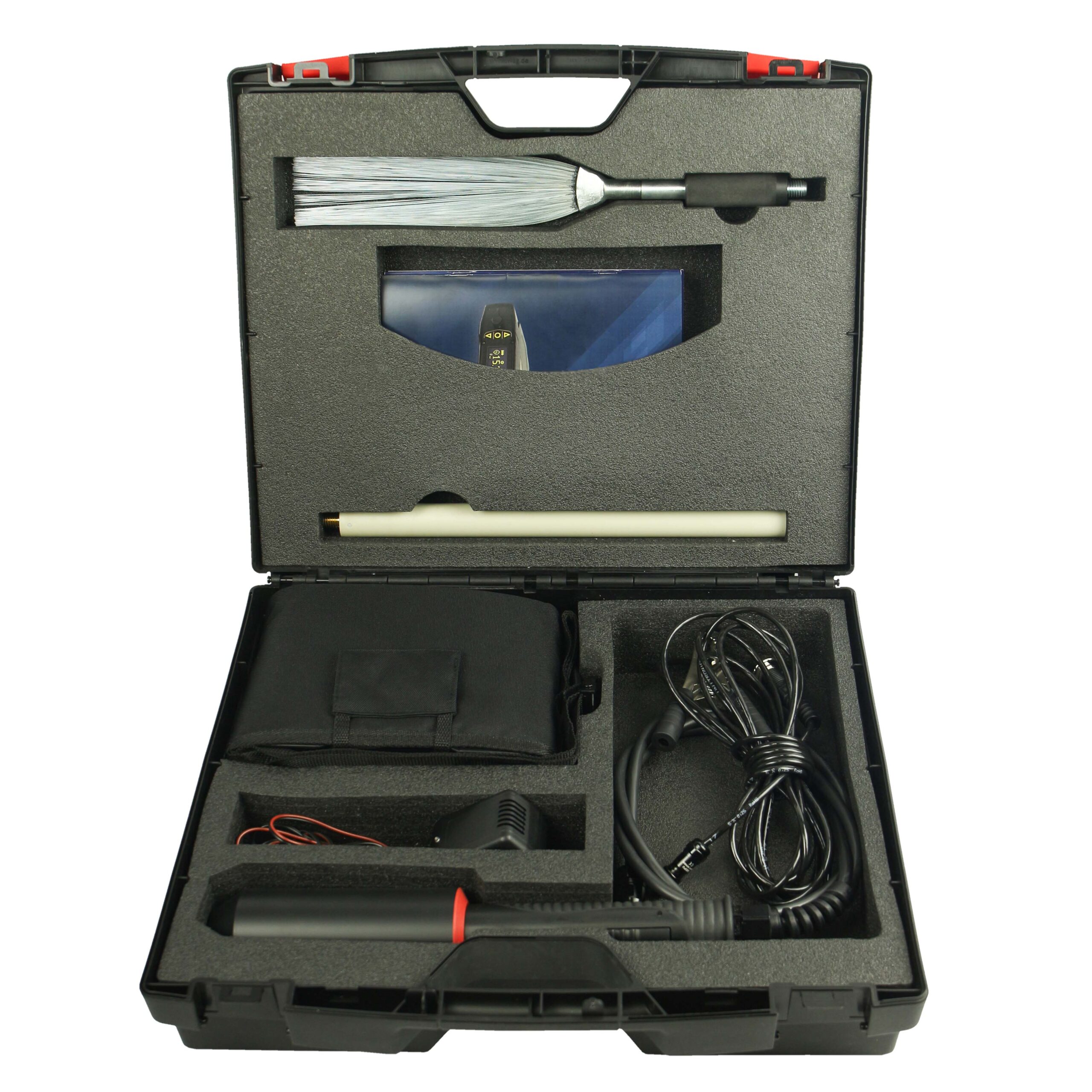

Delivery set
- control unit Corona 40
- case for control unit
- high-voltage handle VT-40
- ground wire with magnet and crocodile clip
- extension rod
- lead-acid battery
- fan electrode
- battery charger
- operating manual

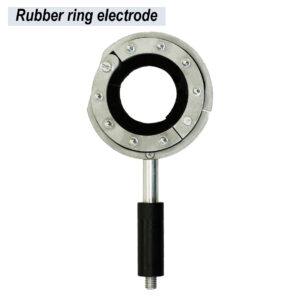

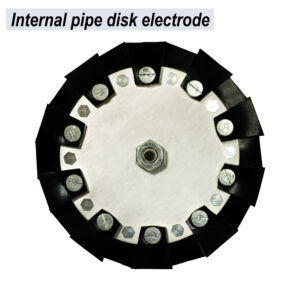

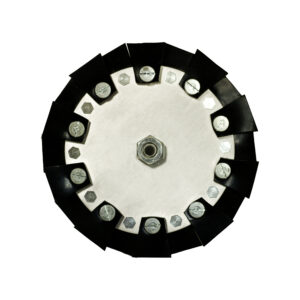

Electrodes
Special electrodes can be made according to customer’s own specification.
Video materials
Corona Holiday Detectors

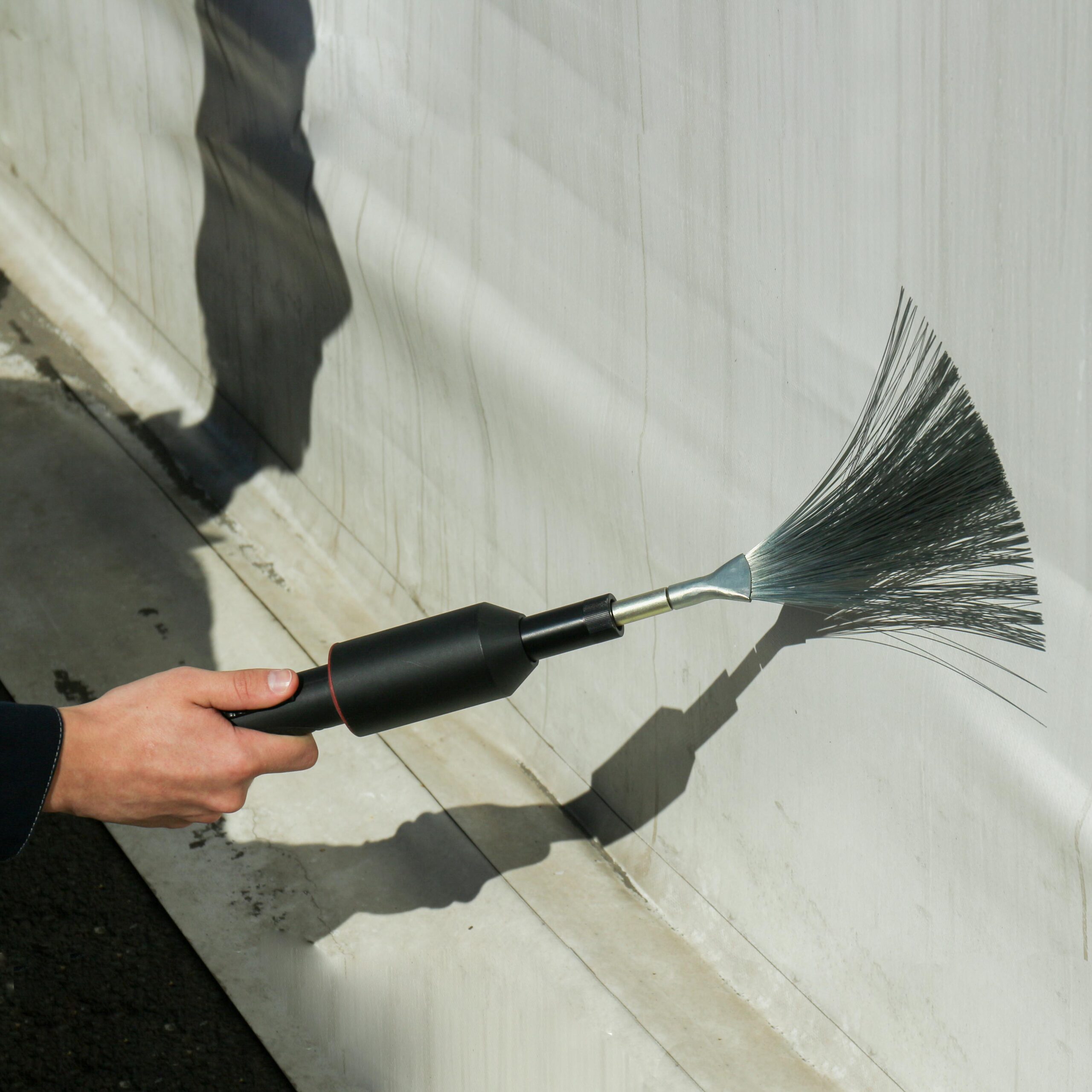

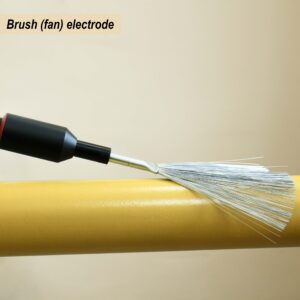

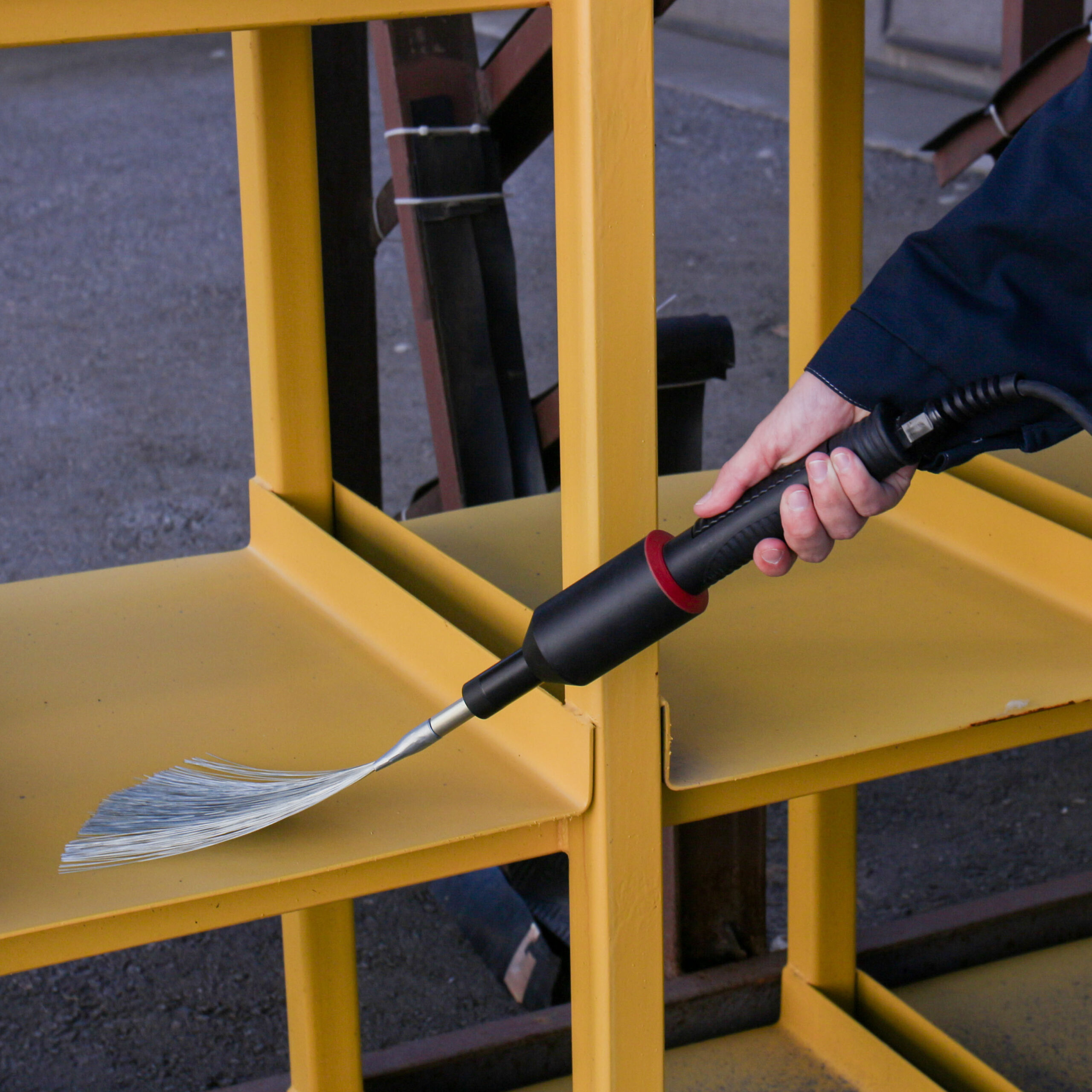

A brush (fan) electrode for holiday detectors
An extension rod for holiday detectors
A brush (hair) electrode for holiday detectors
A straight silicone rubber electrode for holiday detectors

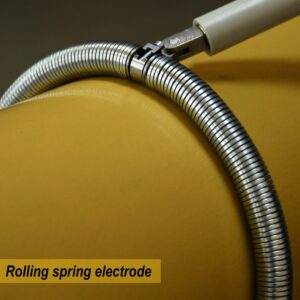

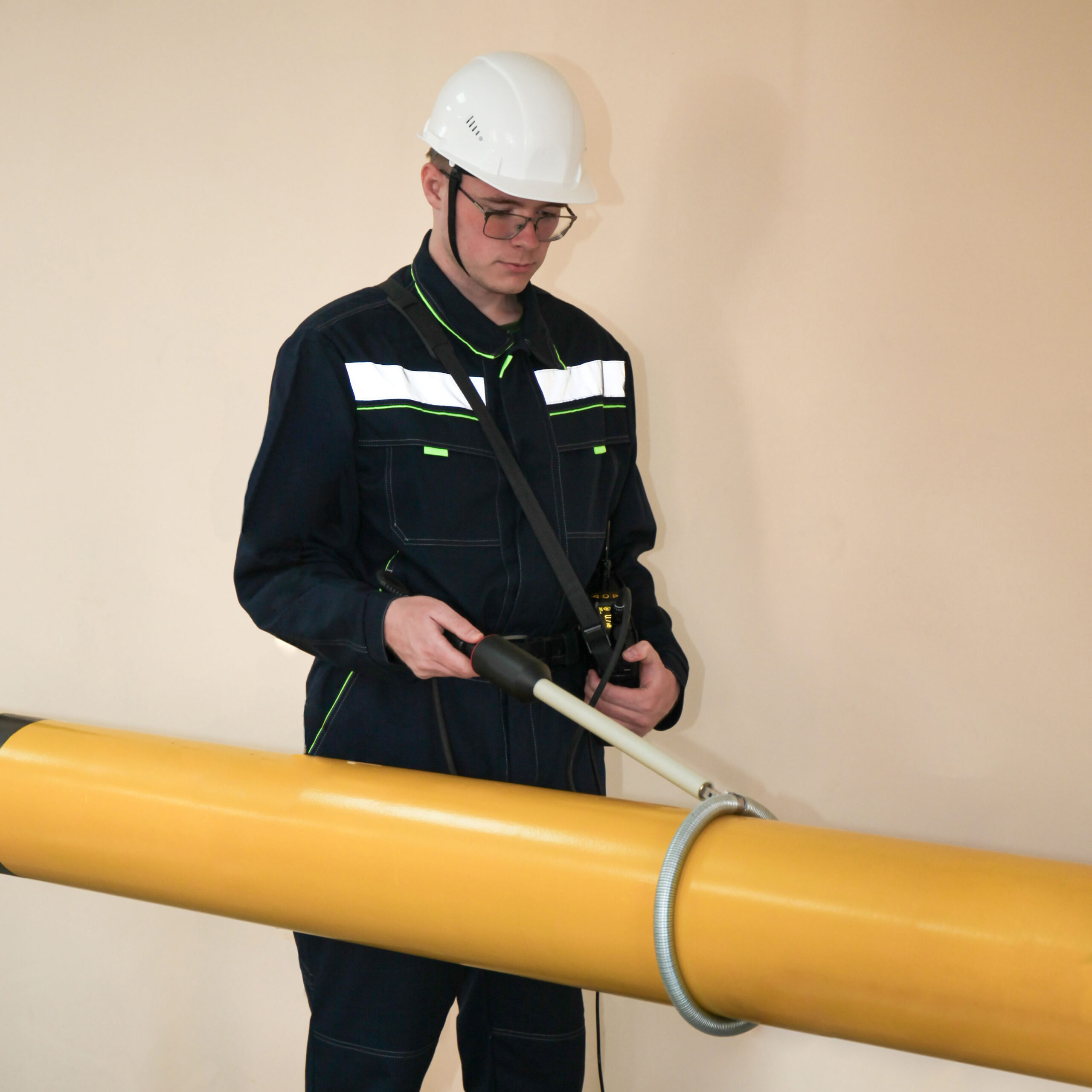

Holiday testing using a rolling spring electrode
Related products
-
Corona 5 – Holiday Detector
The Corona 5 is a compact portable holiday detector designed for non-destructive testing of thin dielectric coatings on electrically conductive substrates. It detects pinholes, pores, cracks, leaks and other discontinuities...
The Corona 5 is a portable pulsed holiday detector for non-destructive testing of thin protective dielectric coatings. It detects pinholes, pores, cracks, leaks and other coating discontinuities using an adjustable test voltage and is suitable for coatings from 50 µm to 1 mm thick.
-

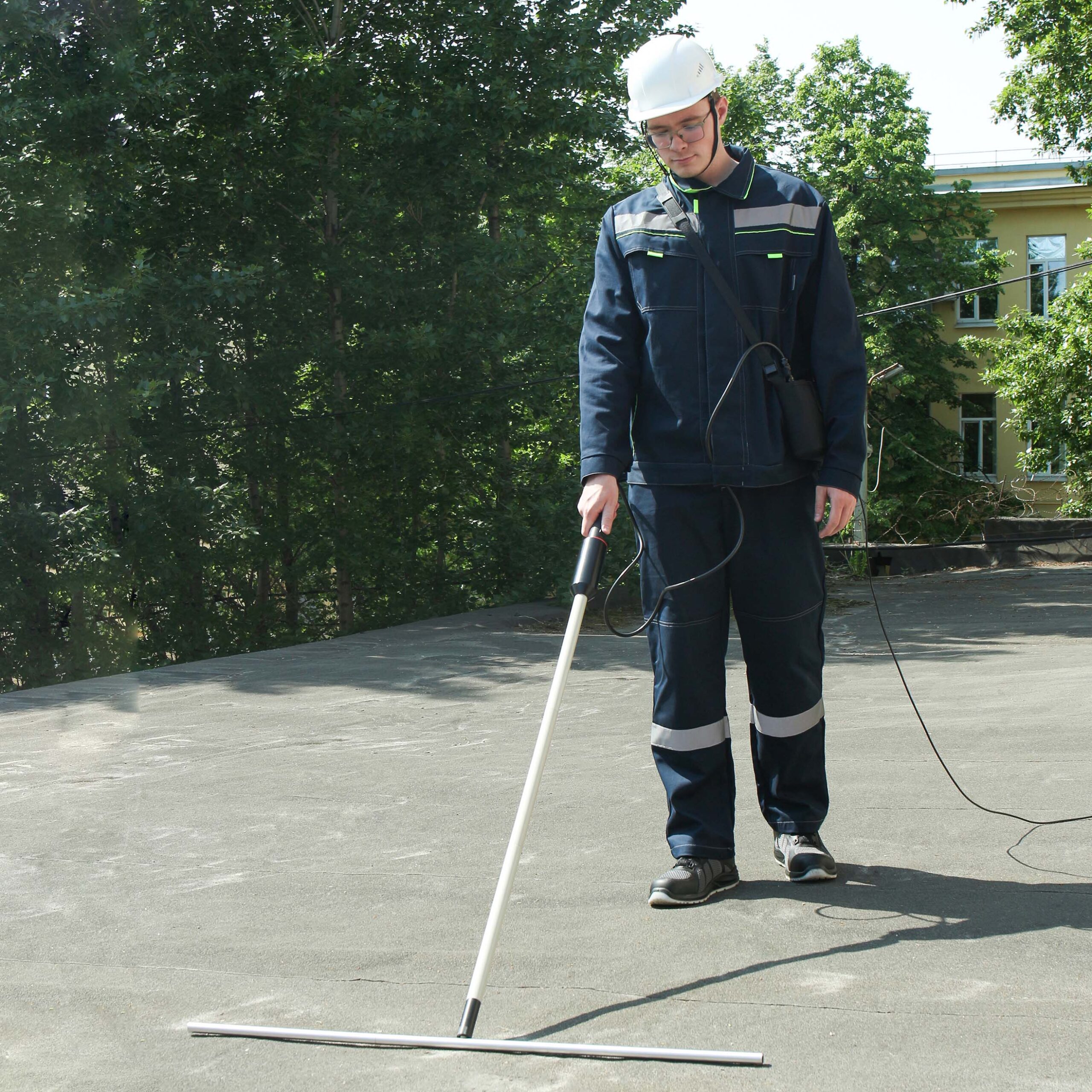

Corona 40 – Flat Roof Leak Detector Kit
The Corona 40 Flat Roof Leak Detector Kit is designed for non-destructive detection of leaks and discontinuities in waterproofing membranes and dielectric roof coatings installed over conductive substrates such as...
The Corona 40 Flat Roof Leak Detector Kit is a portable high-voltage system for detecting pinholes, cracks, leaks and other discontinuities in waterproofing membranes and dielectric roof coatings applied over a conductive substrate or a dedicated conductive layer, such as steel, concrete or aluminium foil.
-

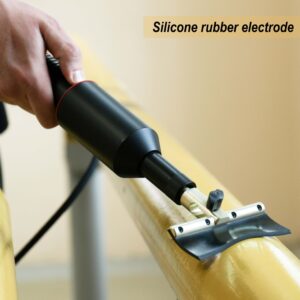

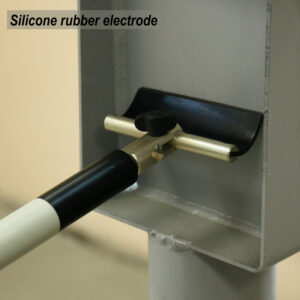

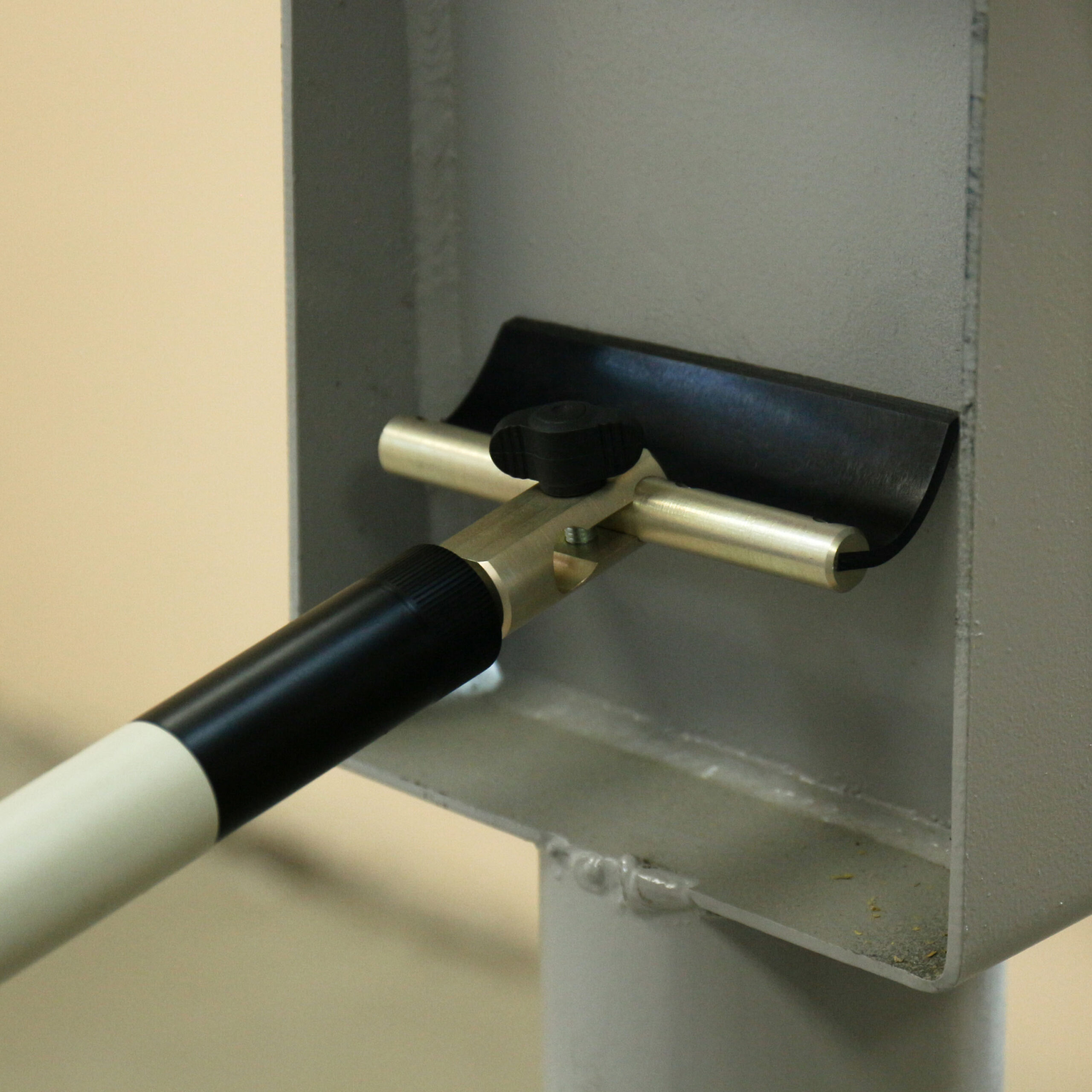

Straight silicone rubber electrode
Straight silicone rubber electrode is designed to define places of discontinuities on insulating coatings with low mechanical strength.
Electrode for locating discontinuities in insulating coatings.
-

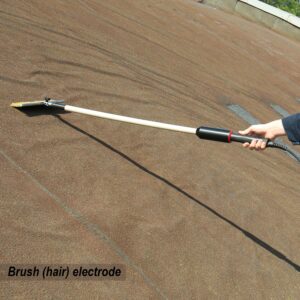

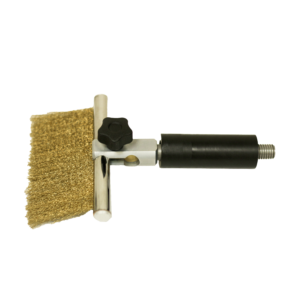

Brush (hair) electrode
