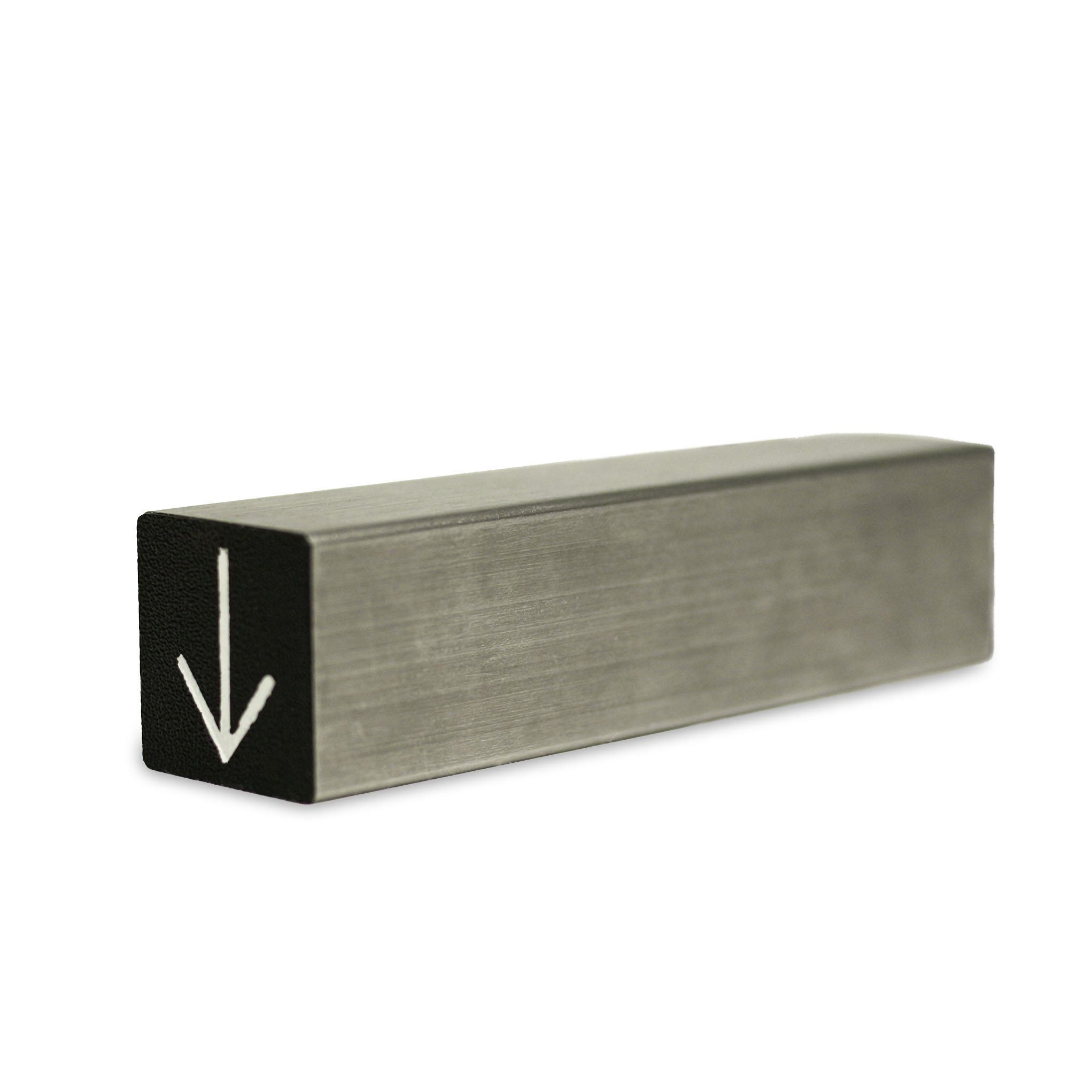

FR2
Description
FR2 is a probe designed for measuring:
- concrete cover thickness and locating reinforcement bars;
- thickness of special-purpose protective coatings (up to 120 mm thick).
Features:
Impact-resistant probe designed for field use in the construction and inspection of reinforced concrete structures, bridges, pipes, and special-purpose products.
Basic technical characteristics
| Technical data | FR2 | Units |
|---|---|---|
| measurement range, T | 1-120 | mm |
| measurement accuracy: | 0-10 mm: ≤±( 0.05T + 0.1) | mm |
| 10-120 mm: ≤±0.05T | mm | |
| minimum diameter of substrate | 140 | mm |
| size | 35×35×180 | mm |
