Description

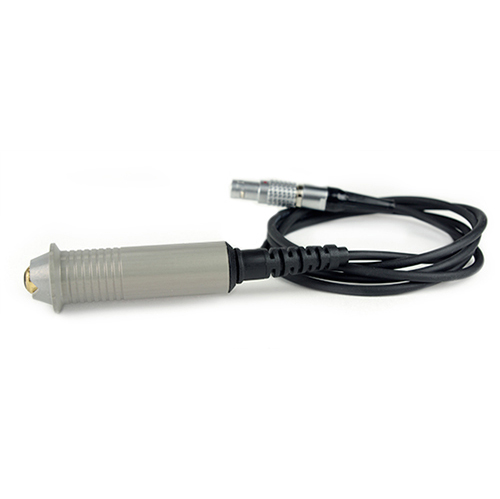

NF0 is a probe designed for measuring the thickness of dielectric (anode oxide, paint, lacquer, powder, etc.) coatings on current-conducting non-ferromagnetic parts.
Features
- Probe with a spring-loaded body and a measurement area diameter of 1.5 mm.
- High resistance to chemical exposure in galvanic environments.
Basic technical characteristics
| Technical data | NF0 | Units |
|---|---|---|
| measurement range, T | 0-300 µm (0-0.3 mm) | |
| measurement accuracy | ≤±(0.01T+1) | µm |
| diameter of test area | 1.5 | mm |
| size | Ø18×86 | mm |
Related products
-
NF2
NF2 is a probe designed for measurement of the thickness of thick-layer dielectric coatings on electrically conductive ferromagnetic or non-ferromagnetic substrates.
-

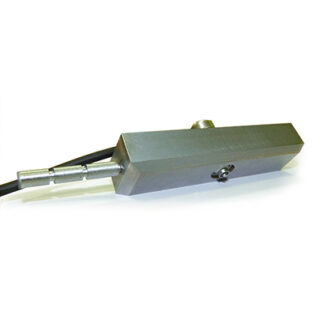

FxP, NFxP
