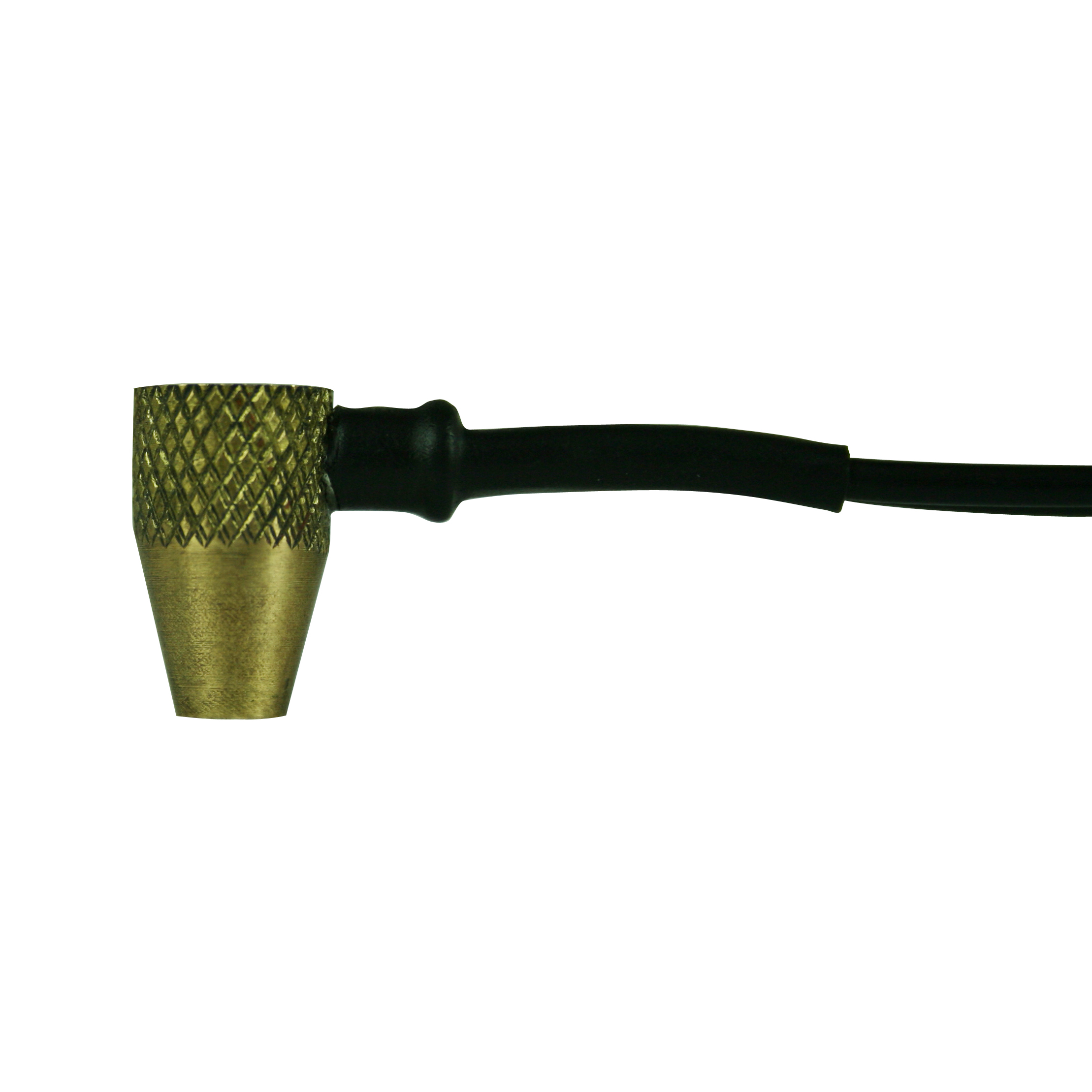

sales@ndtone.comSmall-sized dual element probe 10A4
Description
Purpose
Thickness measurement of pipes walls, thin metal plates.
Particulars
High locality, possibility of testing in hard-to-access locations (longerons, pipes with small diameter, etc).
Basic technical characteristics
| Technical data | Small-sized dual element probe 10A4 | Units |
|---|---|---|
| operation frequency | 10 | MHz |
| thickness range (for steel) | from 0.5 to 10 | mm |
| dimensions of contact surface | Ø4.8 | mm |
| min. product radius R at wall thickness S | R3/S0.8 | mm |
| max. product surface roughness | 40 | µm |
| overall dimensions | Ø9 x 16 | mm |
| operating temperature range | from -10 to +50/100 | °C |
