Description

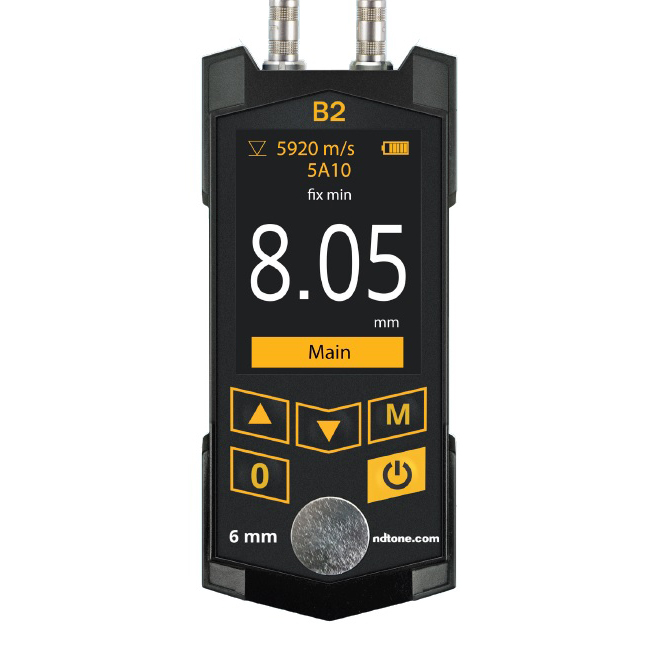

The B2 ultrasonic thickness gauge is a compact and reliable device designed for accurate thickness measurement of metallic and non-metallic products. It is suitable for measuring the thickness of sheets, tanks, pipes, bridges, containers, transportation equipment and other structures.
The device is widely used during operation to assess the condition of equipment and structures, including heavily corroded surfaces and components with deposits or incrustation. It enables reliable evaluation of corrosion state both in-service and post-manufacturing in industries such as energy, pipeline, mechanical engineering, shipbuilding, and transportation.
B2 Leaflet to download below
B2
Features
— high sensitivity, simplicity and ease of operation;
— automatic probe recognition;
— possibility of manual and automatic adjustment gain;
— colour display.
Basic Technical Characteristics
| Technical data | B2 | Units |
|---|---|---|
| measurement range* (for steel), T | 0.5–200 | mm |
| sound velocity | 1000–9999 | m/s |
| resolution (keypad selectable) | 0.1; 0.01 | mm: |
| measurement accuracy: | ±(0.005T+0.05) in range of 0.5 to 99.99 | mm |
| ±(0.005T+0.1) in range of 100.0 to 200.0 | mm | |
| data memory | up to 500 measurements | |
| possibility of gain adjustment | ||
| automatic probe recognition | ||
| display | colour display (TFT 2.4'' 320x240) | |
| power supply – Li-ion rechargeable battery | 3.7 | V |
| operating temperature | from -10 to +50 | °C |
| dimensions | 120×57×20 | mm |
| weight including battery | 150 | g |
| connectors | Lemo 00 | |
| transfer of data to PC | USB | |
| guarantee period: | measuring unit — 3 years | |
| transducers — 2 years | ||
| * Depends on characteristics of inspected material and type of transducer |
Delivery Set
- measuring unit with probes (number and type is agreed with customer)
- miniUSB — USB cable for connection with PC
- CD with operating manual
- carrying case
Probes
Dual element probe 5A10
Purpose
Measurement of thickness of walls of metal tanks, containers, pipes of big diameters.
Basic technical characteristics
- operation frequency, MHz, 5;
- thickness range (for steel), mm, from 1.0 to 200.0;
- dimensions of contact surface, mm, Ø10;
- overall dimensions, mm, Ø18 x 26;
- operating temperature range: from -10° to +60°C.
Particulars
Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.
Dual element polyimide probe 10A6
Purpose
Measurement of thickness of pipes, curved areas of containers with small radius.
Basic technical characteristics
- operation frequency, MHz, 10;
- thickness range (for steel), mm, from 0.6 to 20;
- dimensions of contact surface, mm, Ø6;
- overall dimensions, mm, Ø14 x 26;
- operating temperature range: from -10° to +60°C.
Particulars
Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.
Dual element high-temperature probe 5T12
Purpose
Intended for testing the thickness of hot metal parts. Used with thickness meter B5.
Basic technical characteristics
- operation frequency, MHz, 5;
- thickness range (for steel), mm, from 1.0 to 200.0;
- dimensions of contact surface, mm, Ø14;
- overall dimensions, mm, Ø27 x 50;
- operating temperature range: from -10° to +250°C.
Small-sized dual element probe 10A4
Purpose
Measurement of wall thickness of pipes, thin metal plates.
Basic technical characteristics
- operation frequency, MHz, 10;
- thickness range (for steel), mm, from 0.5 to 10;
- dimensions of contact surface, mm, Ø4.5;
- overall dimensions, mm, Ø9 x 11;
- operating temperature range: from -10° to +60°C.
Particulars
Velká oblast měření, možnost měření v těžko dostupných místech (nosníky, potrubí s malým průměrem atd).
