Description
Purpose:
Inspection of welds, including thin-walled objects. Inspection of tubes, pressure vessels, containers, pumps and valves, turbine blades, shafts, wheels.
Features
— rugged, ergonomic probe housing;
— size and frequency of piezoelectric element correspond to GE nomenclature;
— maximum frequency of the characteristics of transducers provides simple calibration;
— possible replacement of contact surface (sold separately);
— sockets for Lemo 00;
— long life.
Basic Technical Characteristics
| Technical data | Angle beam transducers for flaw detectors | Units |
|---|---|---|
| rectangular piezoplates | 8×9 | mm |
| thickness of protector | 2 | mm |
| dimensions | 25 × 17 × 20 | mm |
| dimensions of the working surface | 22×14 | mm |

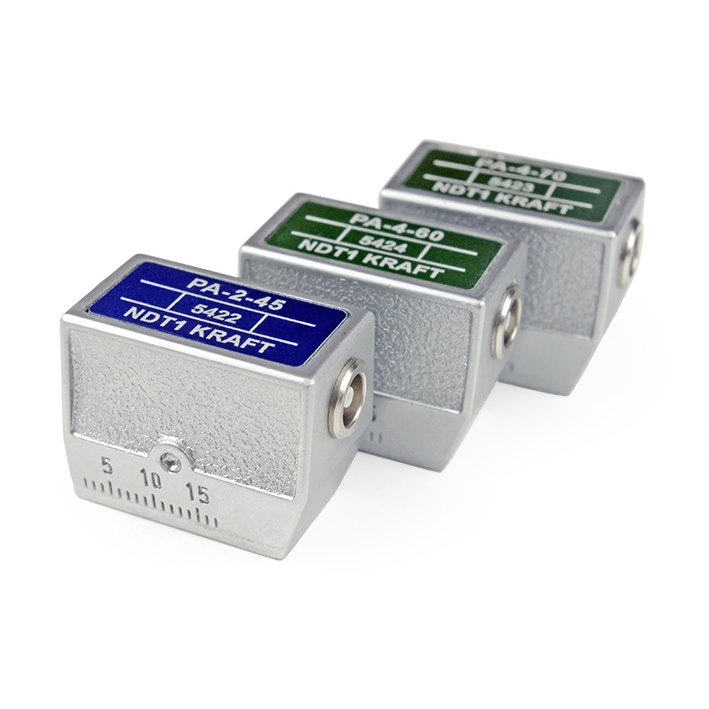

Transducers
| Designation | Angle | Frequency, MHz | Similar to GE |
| PA 2-35 | 35° | 2 | MWB35-2 |
| PA 2-45 | 45° | 2 | MWB45-2 |
| PA 2-60 | 60° | 2 | MWB60-2 |
| PA 2-70 | 70° | 2 | MWB70-2 |
| PA 2-80 | 80° | 2 | MWB80-2 |
| PA 4-35 | 35° | 4 | MWB35-4 |
| PA 4-45 | 45° | 4 | MWB45-4 |
| PA 4-60 | 60° | 4 | MWB60-4 |
| PA 4-70 | 70° | 4 | MWB70-4 |
