info@ndtone.comULTRASONIC TESTING FOR POLYETHYLENE PIPES
Description

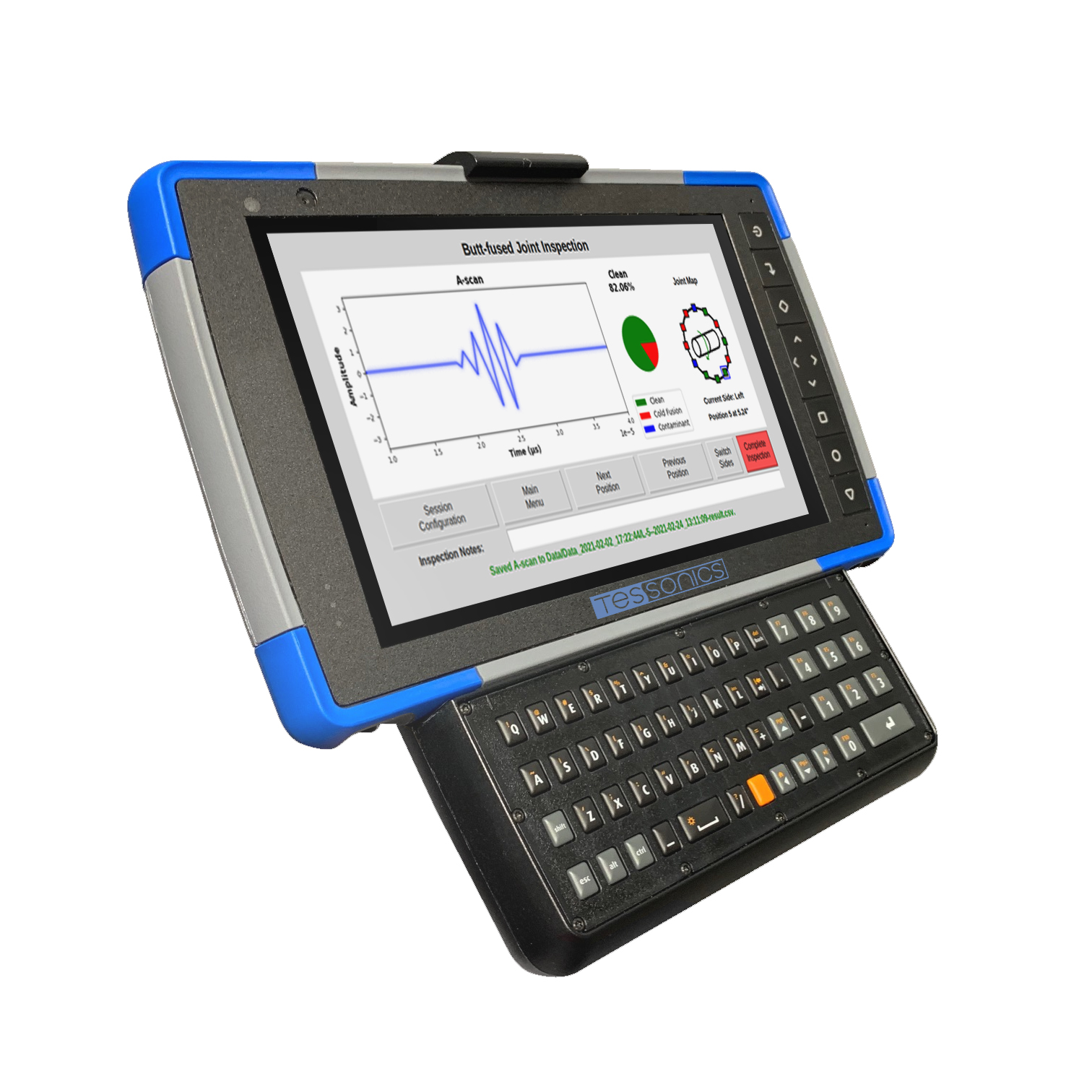

The UTPP is a state-of-the-art portable, lightweight and simple to use device for the non-destructive testing of joints in polyethylene tubes in water and gas distribution networks. It is a measuring device from Tessonics. It allows for the inspection of butt-welded and electrofusion joints on pipes with diameters from 50 to 320mm.
The device is based on modern electronics and has built in artificial intelligence algorithms (neural networks) which allow the operator to confidently find and classify defects. Pre-defined inspection plans significantly increase operator efficiency and minimise the potential for errors.
Features

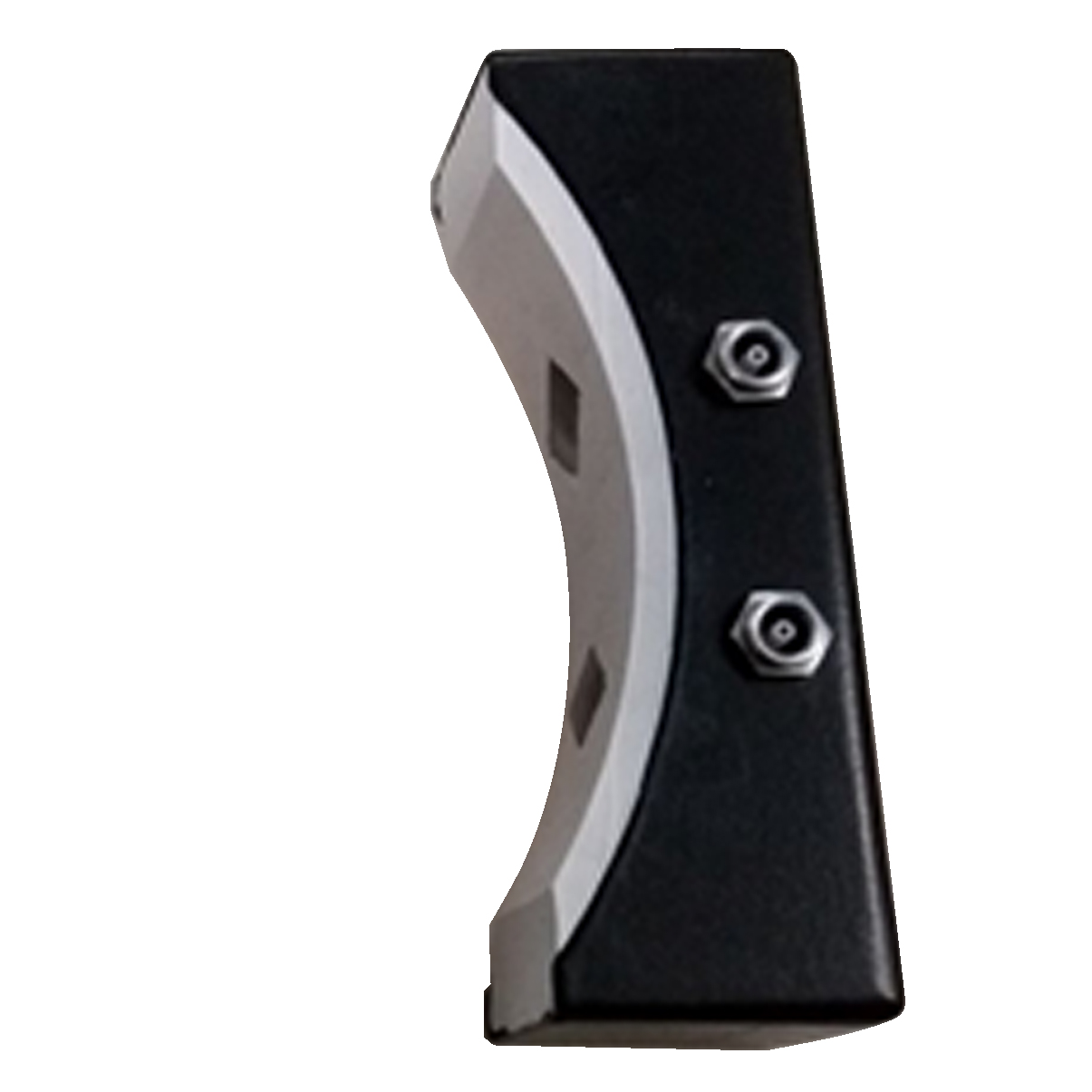

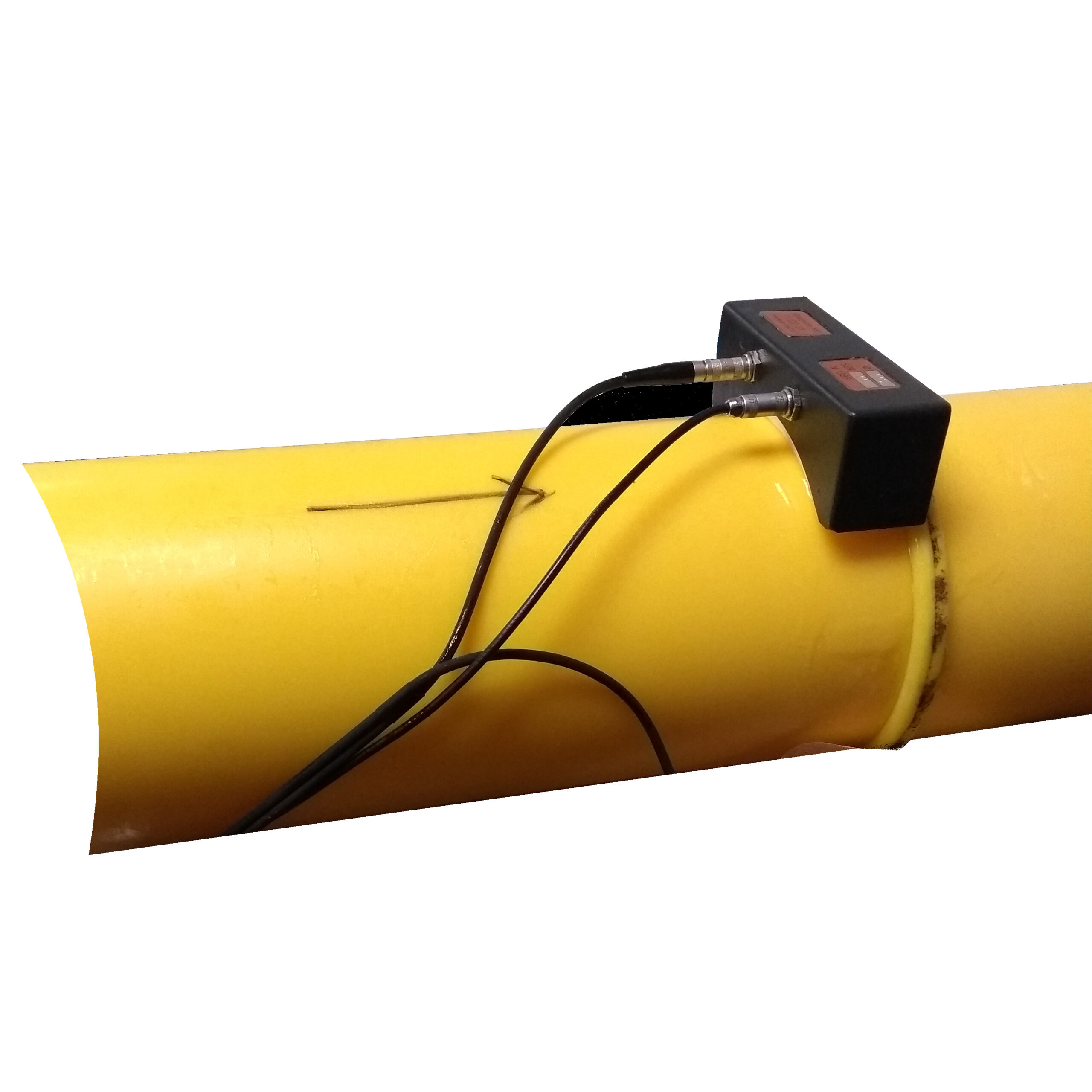

- The usage of a chord transducer for inspection of butt-welded joints and a point contact transducer for electrofusion joints
- Automatic classification of defects
- Simple and intuitive interface
- Reporting system
Basic Technical Characteristics
| Technical data | ULTRASONIC TESTING FOR POLYETHYLENE PIPES | |
|---|---|---|
| Operating System | Android 9.0 | |
| Processor | Snapdragon Kryo 260 | |
| Display: | 7” LCD touchscreen | |
| Resistive sensor display | ||
| Replaceable screen protector | ||
| Memory | 6 Gb LPDDR4x | |
| Storage | 64 GB eMMC | |
| Communications: | Wi-Fi 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz | |
| Bluetooth® | ||
| External Ports: | USB 3.1 OTG | |
| USB-C | ||
| Power: | Replaceable Li-ion 43.2 Wh | |
| Average battery run time: 9-12 hours | ||
| DC adapter: 100–240 V, 65 W | ||
| Transducers | Chord-type for SDR-11 tubes with diameters of 63, 110, and 160mm (other sizes on request) | |
| Single-element contact, 6mm | ||
| Mechanical: | Weight 950 g | |
| Dimensions: 137x215x45 mm | ||
| Rugged all-weather housing |
Applications
Butt-welds and electrofusion joints in polyethylene tubes of medium and high density (PE80, PE100, PE2708)
